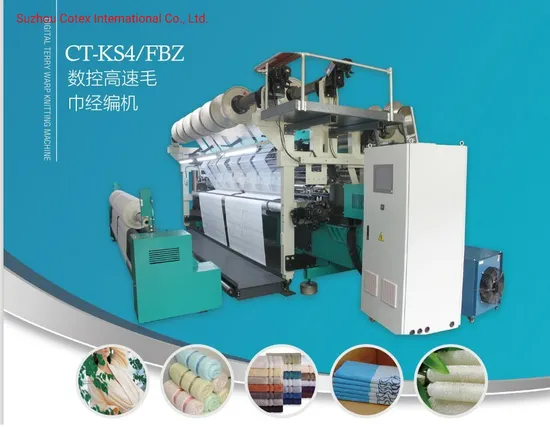

Luxury Microfiber Terry Towel Machine

Product Description

This device uses a crank linkage, and equipped with the oil line forced pressure Ilubrication system and oil temperature control system. independent batching device withbristles device, the broken yarn automatic stop device (optional), electronic yar let-off, electronictake-up (optional), to ensure that the machine high-speed operation and easy to operate.

FABRIC SPECIFICATIONS
Working width	130",186",218",268",280"
Bar	2,3,4
Gauge	E24,E28,E32
BARS/KNITTING ELEMENTS
Individual needle bar	carbon bar	standard
Tongue bar	carbon bar	standard
Sinker bar	carbon bar	standard
Ground bar	carbon bar	standard
Jacquard bar	pizeo jacquard control system
WARP BEAM SUPPORT
Free standing	application 30"/40"beams
MACHINE DRIVE AND CONTRO
Main motor	invertor regulated control	standard
WARP LET-OFF DEVICE
EBC	electric control	standard
CLOTH TAKE-UP DEVICE
EAC	electric control	standard
BATCHING DEVICE
Electric	integrated centrally driven	standard
Brushing device for terry towel		optional
Batching diameter
PATTERN DRIVE
Pattern disc		standard
EL	via electric motor	optional
MONITORING&SOFTWARE
HMI	monitoring and reporting via display	standard
Cotex Suite		optional
OIL SUPPLY
Heater exchanger	heating and cooling	optional
SAFETY
Light curtain	depending on country of delivery	optional

Knitting terry fabrics with staple Yarn and filament yarn.Warp knitting terry machines produces plain terry as well as some simple designs, such as zigzag, wave and others.
KNITTING FABRICS APPLICATIONS:
Cleaing cloth,Hand towels, bath towel,Bath robes,Beach towels,Semi-technical applications etc.
Terry Warp Knitting Machine SPECIFICATIONS
Machine type: ts4-c-n(tm 4t) (CHIAN LINKS TYPE)
Working width: 155",190"
Machine gauge: e24,e26,e28
Machine speed(max) : ~1300rpm(155") ~ 1200rpm(190")
Pile height: l1: 4mm(max.) L4: 10mm(max.)
Bars no.: 4 bars (2 gb, 2 pile bars)
Characteristics: with el drive system, it can knit the terry pattern effect and plain stitch as a max speed of 1,000rpm
Beams Size: 21"*30" or 21"*42"
Machine weight(kg): ~6000kg (155"), ~7000kg (190")
NEEDLE ELEMENTS:Needle elements:Compound needle: 51.50g11&51.50g8Core needle : C-81&c-29Gb1 guide needle : L-24/2-42-54Gb2 guide needle: L-93Gb3&4 guide needle: L-24/2-84-63Sinker needle : P-24x-77-24

---
