China Knee Type Universal ISO50 Milling Machine (X6432B)

Product Description

Product Description
Main Features:
1. Ball screws can be ordered instead of standard lead screws at special request.
2. Vertical and Horizontal spindle hole taper both are ISO50.
3. The milling head can swivel at 360°.
4. Rotary table can be ordered at special request.
5. Worktable feed on X,Y,Z by manual or automatic.
6. Big worktable load.
7. CE standard can be chose.
8. S-chneider electric can be ordered at special request.
9. More stronger type.

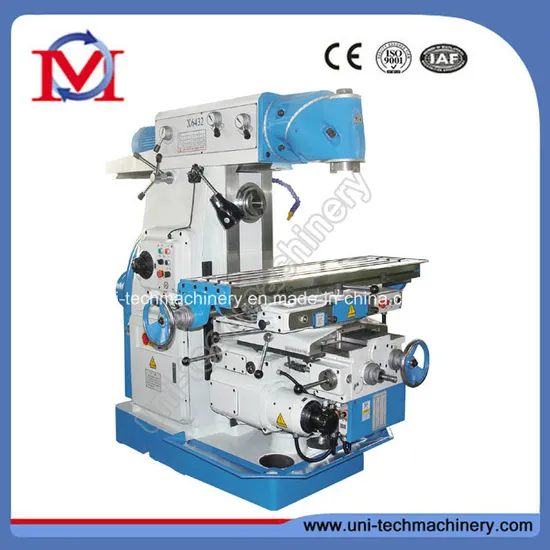

China knee type universal ISO50 milling machine (X6432B)
X6432B is a China knee type heavy duty universal ISO50 spindle milling machine with CE certification, it can mill any angle surface through front half-sphere by swivelling milling head.

Product Parameters

Specifications:

Specification	Unit	X6432	X6432B
Table size	mm	320x1325	320x1600
Max Longitudinal travel(manual/auto)	mm	700/680	900/880
Max transverse travel(manual/auto)	mm	255/240
Max vertical travel(manual/auto)	mm	320/300
Max rotary angle	--	±45°
T Slots(N*W*D)	--	3/18/70
Spindle hole taper	mm	7:24 ISO50
Distance of Horizontal spindle axis to table surface	mm	30~350
Distance of table center to vertical spindle	mm	190~510
Distance of table center to vertical ways of column	mm	470~215
Distance of table center ram	mm	155
Spindle speed step	--	12(V) 18(H)
Spindle speed range	r.p.m	60-1750(V) 30-1500(H)
Table feed steps	--	18
Table feed range Longitudinal	mm/min	23.5~1180
Table feed range cross	mm/min	23.5~1180
Table feed range vertical	mm/min	8~394
Table rapid moving speed Longitudinal/sross	mm/min	2300
Table rapid moving speed vertical	mm/min	770
Power of spindle	Kw	4(V) 7.5(H)
Spindle of motor range	r.p.m	1440
Feed motor	Kw	1.5
Feed of motor range	r.p.m	1440
Net Weight	mm	2900	3000
Overall size (L x W x H)	kg	2294x1770x1780	2294x2050x1780

Standard accessoires :

Name	Specification Model	Qty
Machine	-	1set
ISO50 Cutter arbor Cutter arbor	φ40	1 piece
Horizontal arbor assembly	Φ22	1 piece
Horizontal arbor assembly	Φ27	1 piece
Horizontal arbor assembly	Φ32	1 piece
Oil gun	-	1 piece
Drawbar	M24x720	1 piece
Double-ended wrench	13x14	1 piece
Double-ended wrench	27x30	1 piece
Double-ended wrench	32x36	1 piece
Inner hexagonal wrench	5	1 piece
Inner hexagonal wrench	8	1 piece
Inner hexagonal wrench	10	1 piece

Optional accessories:
3-Axis SINO DRO
Universal dividing head
Rotary table TSL250
Machine vice Detailed Photos

Our service:
We also would like to let you know our warranty about our machines.
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.

---
