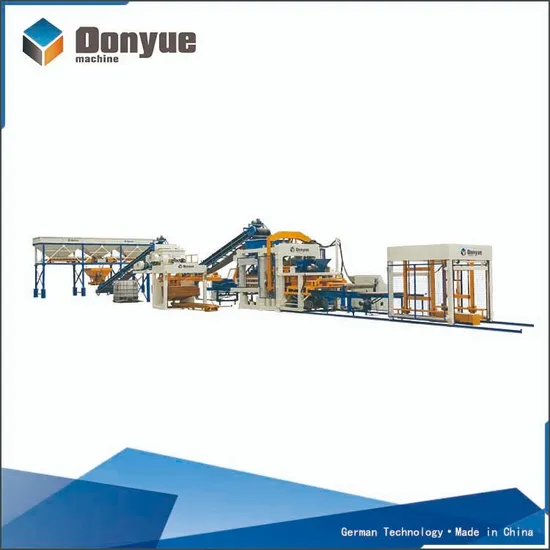

Cement Fly Ash Sand Block Mold Machine (QT4-15C)

Product Description

Cement Fly Ash Sand Block Mold Machine (QT4-15C)
1)The features
1. Control System of cement fly ash sand block mold machine:
Electric control system consists of imported color touch screen and programmed PLC with data input and output device, including safety logical control and trouble shooting System. Vibration analyzing system: Detecting the vibration frequency, vibration amplitude, vibration acceleration and noise of the whole machine, so as to adjust the vibration to optimum efficiency.
2. Hydraulic System of cement fly ash sand block mold machine:
The system consists of imported components and seals with high dynamic performance proportional valves. The action of key cylinders can be operated through the regulator of flow and pressure according to the working requirement. The main frame is wide for the convenience of mold filling, so more blocks can be made. In order to get even pressure, three oil reservoirs are used, which raise the pressure to as high as 100t. Moreover, the smallest reservoir in the middle increases the operating speed of the left and right ones respectively, thus improving the productivity.
3. Frequency conversion motor drive the vibrating case, easy to obtain ideal vibration force, vibration frequency and amplitude, can produce high quality block. Unique double-vibration box drives all in one vibration table to make the deviation of amplitude lower, more even so as to guarantee the consistency firm and durable.
4. Adopts more advanced material-feeding technology, material from the hopper fall into the mould case rapidly and evenly, make the weight error less than ± 5%, the intensity error less than≤ ± 15%.
5. Low energy consuming. Compared with common Block Making Machine, these equipment investment has increased by about 18%, but output has been improved by 35%, unit consumption has been reduced by about 5%.
6. Incomparable advantages in producing process: High thickness and rectangle steel frame, four guidance column, solidity structure and prolonged life.
2) Parts of brick machine
3)Company introduction
DONYUE Machinery Group Co., Ltd. is a Chinese manufacturer of dedicated machinery for construction blocks and panels. Our company offers complete production lines for premium building components such as the autoclaved sand-lime brick, autoclaved aerated concrete block, and autoclaved aerated concrete / autoclaved lightweight concrete panel. Additionally, we provide various types of pressure vessels and block-making machines. Our brick machine has been exported to more thn 60 countries.Oversea offices are built in India.Indoneisa.Vietam etc.We have 32 fly ash brick making machine plant in India.They spread in Bhubaneshwar ,Coimbatore,Rajkot,Koltata,bangalore,Indore etc.
Two after sale service centers and spare stock center are available in Ahmedabad and Bhubaneshwar .
India engineers are well trained in China and can install the machine in India directly.By choosing DONYUE, customers can enjoy professional benefits with our dedicated services for design, installation, layout planning, technology transfer, and production guidance.

Overall shape	7100×1600×2610mm
Pallet size	1010×550×30mm
Vibrating type	Vibrator vibrating,top oil pressure
Forming cycle	15-20s
Vibration frequency	4500-5100times/min
Material hopper volcume	0.5m³
Total power	50.05KW
Rated pressure	25MPa
Working pressure	18-20Mpa
Host machine weight	5.8T

Theoretical workshop area : 150m2 , need about 4-5 workers .the office , curing area and stacking area to arrange according your fact status.
(2) Semi-auto Concrete Hollow Block Machine Production capacity

type	Term(mm)	Pieces/mould	Forming cycle	Production
Hollow block	390×190×190	4	15-20	800
Porous brick	240×115×90	14	15-20	3000
Standard brick	240×115×56	30	15-20	6000
Paving block	250×250×80	6	15-20	1200
curbstone	500×300×120	3	15-20	700

Semi-auto concrete hollow block machine International size brick production

Size(LxWxH)	Pcs/Mould	Pcs/ Hr	Pcs/ 8 Hr	m3/year
400X100X200	8	1200-1920	9600-15360	27648-36864
400X150X200	6	900-1440	7200-11520	31104-41472
400X200X200	4	600-960	4800-7680	27648-36864
400X250X200	3	450-720	3600-5760	25920-34560
Paver:200X100X60	16	1920	15360
Paver:200X163X60	8	1200	9600

---
