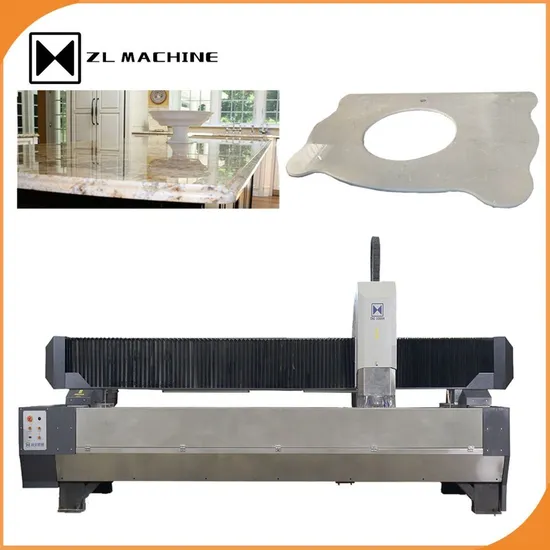

CNC Router Machine for Granite Marble Quartz Stone Countertops

Product Description

Product Parameters

Model	ZLCNC-3213H	Unit
Worktable size	L3500*W1500	mm
Maximum Processing	L3200*W1300	mm
Type of Shank tool	BT40
Count of shank tools	24(left12,right12)
spindle power	7.5-11	kw
Total power	15	kw
Way of suction	Air compressor
Dimensions	L5500*W2750*H2300	mm
Water consumption	2	m³/h
Total weight	3	t

Product Description
We supply Stone CNC Router, model:ZLCNC-3213H, for processing countertops of Granite, Marble, Quartz Stone.
It is high-efficiency, high-precision and simple to operate: 1st, put the plate on the suction cup; 2nd,choose the design of the countertop; 3rd,enter the statistic; 4th,check the starting point; 5th, start working.
We provide OEM/ODM service.
This type of machine can be put into a container without separating.

Product Features
1: The machine is a heavy-duty conjoined structure; it is strong, takes up less space, and is easy to install and move.
2: The machine equipped an automatic tool-changing spindle with a tool magazine of 24 positions.
3: The main machine housing is made of stainless steel material, so the machine has a long service life.
4: The system of the machine comes with a module drawing library, and the operator can just choose a model and enter the count of the countertop.
5: Each machine was tested with stone plates in the factory to ensure that every detail was debugged to the best state and then packaged in the factory.
Application picture
Packaging & Shipping
Company Profile
ZL Machine was founded in 1993, and specializes in stone machine manufacture.
After more than 30 years' Development, we have become one of the most competitive enterprises in China. We have many Patents and have won the honors of "China Top Ten Enterprises (Stone Machinery)", "China AAA Grade Enterprise for Credit&Service (Stone Machinery)", "China Competitive Enterprises (Stone Machinery)", etc. And we have gained the quality certification of ISO9001, ISO2000, China Occupational Health and Safety, CE, etc.

Certifications
ZL Machine's Honors come from its Strength and efforts. They represent our excellent development and unremitting efforts in stone machinery industry. We will transform every honor into continuous development and innovations again and again.

---
