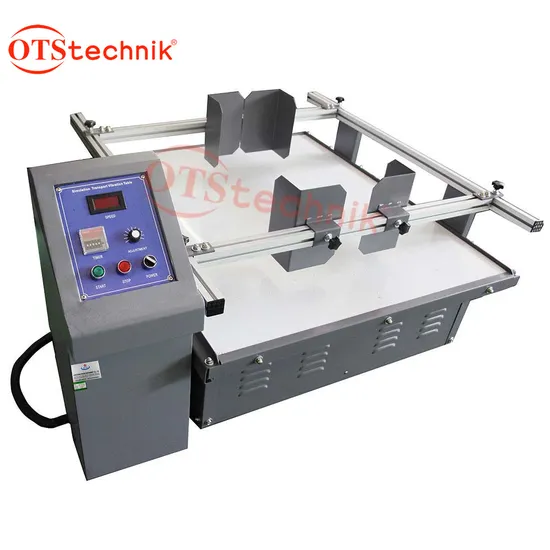

ISO Ots Digital Simulation Standard Transport Vibration Table

Product Description

Hot Selling Simulation Packing Transportation Vibration Testing Machine
Introductions:
This product is for a variety of packaging materials, PC boards, electrical products .
as well as the simulated transport vibration test of the packaged products, to assess the degree of vibration-resistance.... simulate the transport process Caused damage because of the vibration force, the test results can be used as the reference of the design packaging.
Features:
1. Low price, the price is only 10% of similar products in the United States;
2. Digital instrument display vibration frequency;
3. Synchronous mute belt drive;
4. The specimen is clamped with rail, easy to operate, safe;
5. The base of the machine adopts heavy-duty trench with damping pad, easy installation, smooth operation, no need to install the foot screw;
6. DC motor speed, smooth operation, strong load capacity;
7. Rotary vibration (commonly known as racing), in line with European and American transport standards;

Design standards: EN71 ANSI, UL, ASTM ISTA

Analog Transport Vibration Test Bench Test Standard Requirements for Equipment:
1. ISTA test standard is the American Transportation Association standard
2. ASTM test standards are American Materials Association standards
Two standard requirements for simulated transport vibration are:
1. Amplitude is 25.4mm (1 inch, fixed)
2. Frequency 1.5-5Hz (or 100-300 r / min adjustable)
3. The test basis is: T = 14200 / CPM (based on the total number of vibration is 14200 times)
ISTA / ASTM standards related test methods table:

Test Speed (CPM)	Corresponding frequency (Hz)	testing time (M)
150	2.5	95
180	3	79
210	3.5	66
240	4	60
270	4.5	53
300	5	48

Technical Parameters:
Industrial Simulated Transport 0~999H Vibration Test Equipment ASTM IEC UL ISTA Standard

Frequency range	60~300RPM cycle/min (Adjustable)
Vibration mode	Rotary vibration (Vertical and horizontal)
Amplitude range	25.4mm(1 inch) meet ISTA/EN71
Max .Load	60KG
Accuracy Grade	0.5
Simulation speed	25 ~ 40km / h
Working Table size(L*W)(mm)	1000*1200 mm
Digital speed	Accuracy is not greater than ± 3 rev / min
Work time setting range	0~999H99M
Speed display accuracy	1RPM cycle/min
Motor Power	1HP
Max.current	5A
Power	1 phase 220V 50Hz/60Hz
Overall dimensions	1255*1070*660 mm
Machine weight	125kg
Environmental conditions	temperature: 5 ~ 40 ºC, relative humidity ≤ 85%
Speed control mode	DC speed control or AC frequency control
*** Standard: EN71,ANSI,UL,ASTM ISTA

Advantage Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE Customer Support Services Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Related Products
Company Profile
Dongguan Xinbao Instrument Co., Ltd, with its own brand--OTS, has been dedicating in providing professional testing equipment with top quality since its establishment in 1978. It owns sophisticated and advanced technology in producing environmental test chambers and mechanical test machines like temp humidity chamber, thermal shock test chambers, rain and dust test chambers, salt spray chambers ,walk in /drive in test chambers, tensile testing machine, vibration test machine, other customized test chambers and so on. Products made by OTS reach international standards: ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, IEC. Also they are widely used in different area: R&D Institutions, Quality inspection institutions, universities,electronics, communications, instrumentation, automobile, plastic, metal, building materials, aviation, etc.
Manufacturing Technique Customer Photos Now OTS has its main production base in Dongguan, a branch in Suzhou and offices in South Asia, Europe, USA. OTS also owns an independent laboratory which exhibits all currently produced machines under CNAS calibration, so customers can check the function and quality immediately. Equipped with over 30 workers in a metal plate department, OTS is capable to produce customized shells; What's more, OTS has enough stock to satisfy customers need in time. In the meanwhile, every machine must be examined for 3~days before shipment and with lifetime maintenance service. Certifications Packing&Shiping FAQ 1.Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2.What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3.Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
4.How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly. Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
If you want to know more information...
Please leave a message below and click " SEND "
Thanks for your time and attention~Thank you!

---
