EPS Cement Sandwich Panel /Sandwich Cement Wall Board/Cement Sandwich Panels Machine

Product Description

China Amulite Group
Lightweight EPS Cement Sandwich Wall Panel Production Line
First Part : Introduction
Lightweight EPS Cement Sandwich Wall Panel Machine Is Manufactured According To Current Development Trend Of New Building Materials Market,Our Company Develops The New Innovation Style Of Highly Automatic Production Line,Which Can Make Waste Water Recycle And Wastage Material Reused Through Elaborate Style; Our This Plant Can Demould Automatically,Which Can Save A lot Of Labor Cost ;

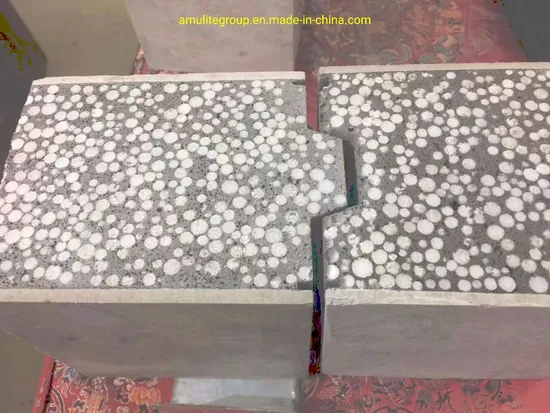

New Lightweight EPS Cement Sandwich Panels Is One New Wall Products,Which Have Good Features Of Energy -Saving,Environmental Protection,Thermal Insulation,Sound Insulation,Light Weight,Which Make Such Product More Popular All Over The World ;

Machinery Details
Capacity	20,000sqm~600,000sqm per year
Thickness	50-250mm thickness. special sizes need to be customized
Length	2440~3600mm, special sizes need to be customized
Width	610mm , special sizes need to be customized
Raw material	There are mainly two different types Cement+Fly ash/EPS/Ceramsite/Sand, etc (optional) Formed cement+additives
Finished board type	Composite board/sandwich board, with surface board Lightweight solid panel, without surface board
Surface board types	Calcium Silicate Board Cement Fiber Board MGO Board
Electrical components	There are mainly two different types

Equipment Matching For Different Production Capacity

Item/Year Capacity		100,000M2/Year	200000M2/Year	300,000M2/Year	500,000M2/Year
Raw Material Tank		2 X 80Tons	2 X 100Tons	2 X 120Tons	2 X 120Tons
Mixer Station		AM1200	AM1500	AM2000	AM3000
Mould Cars		5Sets	10Sets	15Sets	25Sets
Capacity M2/8Hours	75mm	360M2	720M2	1080M2	1800M2
	90mm	315M2	630M2	945M2	1575M2

Second Part: Machine Show
:Name : Boiler Boiler Can Gas Generated,Oil Generated,Electricity Generated,Which Provide Steam For Plant;
:Name: Mixer Platform
Including:Main Mixer
(Can Choose According to Production Capacity):AM1500(For 10 Sets Of Mould Cars),AM2000(For 10-20 Sets Mould Cars),AM3000(For 20-30 Sets Of Mould Cars );
Automatic Materials Input System:
Screw Conveyor Machine(Input Cement,Fly Ash),Second Material Lifter Machine(Input Sand,Additives And Other Recycled Materials);
Automatic Metering System :Including : Cement,Fly Ash Metering System,Water Metering System,EPS Powder Metering System ; Operating Platform:Metering Platform,Mixer Platform,Electrical Platform,Pouring Platform,Supplementary Platform ; Automatic Control System:Which Can Make Mixer System Fully Automatic,One Worker Can Operate From Input Materials ,Metering,Mixing And Pouring Whole System ;
:Name : EPS Forming Equipment System Including :EPS Forming Machine,Screw Conveyor,Fluidized Bed,Second Material Tank And Accessories,Mixer Head And Accessories;
:Name: Vertical Wall Panel Mould Car Vertical panel mould car can produce 10 pcs one times. So the production capacity is very higher.
:Name: Fully Automatically Demould Car It is fully automatically demolding the wall panel. It can demould 5 sheets one time and need about 20 mins for one mould car, which improve the capacity and save labor cost.
:Automatic Transfer Cars System Including :
Traction System,Which Make Mould Cars To Move Freely Between Front And Back ; Ferry Cars System,Which Make Mould Cars Can Transfer Between Different Rails;
:Name: PLC Control Cabinet
For the control systerm, we use PLC simens system with higher quality.

---
