250ml Pet Bottle Blow Molding Machine

Product Description

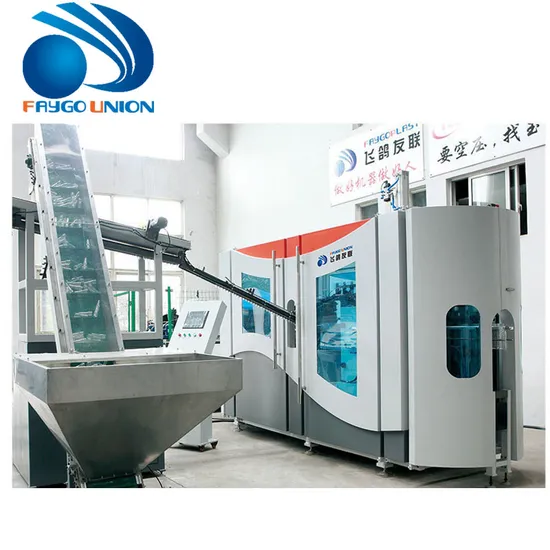

FAYGO PLAST pet bottle blow molding machine introduction:
FG series full-automatic pet bottle blow molding machine with two-step automatic blow machine.
It has four cavities and the maximum volume of the finial bottle is 2L.The capacity can be 6800-7200BPH, It can blow bottles in shapes:Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET etc.
1)High Automatization
2).High Intelligence:The machine can be controlled through touch screen and running status is shown on it.
3).High Quanlity:Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4).High Speed:6800BPH(4-cavity)
5).No Contamination:Closed production zone, good self-lubrication system avoid contamination.
6).Low Cost:Low consumption of electricity, air and water.
7).High Transparency:Easy maintenance, absolute safely, visual inspection, low noise.
Our high quality pet bottle blow molding machine advantages
(1)The unique cam linking system intergrates mold-opening, locking and bottom elevating in one system, equipped with high speed servo driving system which greatly shortens the blowing cycle and accelerates the speed;
(2)With rotary continuous preforms loading system, which realized fast, efficient and stable preforms entrance;
(3)Heater distance is minused to 38.1mm, compared with the normal neating oven, it save more than 30% electricity, which help arrive energy saving effect, also equiped with the air cooling system and excessive heat doscharge system, it ensures the stable temperature at the heating zone.
(4)The pet bottle blow mouldig machine adopts modularization concept, make full machine convenient& cost-saving for future maintenance and changing changeovers.
FAYGO PLAST pet bottle blow molding machine main parts:
A).PLC colour display:OMRON(JAPAN)
B).Pneumatic parts:FESTO(GERMANY)
C).Controller of preform transfer:Servo motor National(JAPAN)
D).Other electric parts are all world-famous brand
FAYGO PLAST pet bottle blow molding Technology is below:
FG-B4-6000-7200 Four Cavity Linear pet bottle blow molding machine:
250ml-2000ml (25mm, 28mm& 30mm mouth)
1, Our pet bottle blow molding machine Advantages:
Our new design blowing machine for pet perform with below high-tech can save 130000kw electric for customer compare with normal linear four cavity blowing machine.
2, Our pet bottle blow molding machine manufacturers are below:

ITEMS	NAME	MODEL	QTY
1	Automatic Bottle Blowing Machine	FGB4(6000-7200)	1set
2	Touch Screen	Include electric parts& touch screen	1set
3	Preform Elevator	Including electrical parts& touch screen	1set
4	Preform Sorter	Sorted	1set
5	Air Compressor	WH-2.0/30-SB	3sets
6	Air Dryer	6.0m3/min 30Kg	1set
7	3 Stage Air Filter	6.0m3/min 30Kg	3sets
8	Oil separator	sorted	1set
9	Air Tank	2 m3	1set
10	Mold Chiller	6HP	1set
11	Oven Chiller	3HP	1set
12	500ml Blowing Mold	500ml	1set
13	200ml Blowing Mold	200ml	1set
14	1000ml Blowing Mold	1000ml	1set

---
