Smart Ultrasonic Gas Meter with Prepaid Remote Control and Lora/Lorawan/Nb, G1.6/G2.5/G4/G6/G10/G16/G25/G40/G65

Product Description

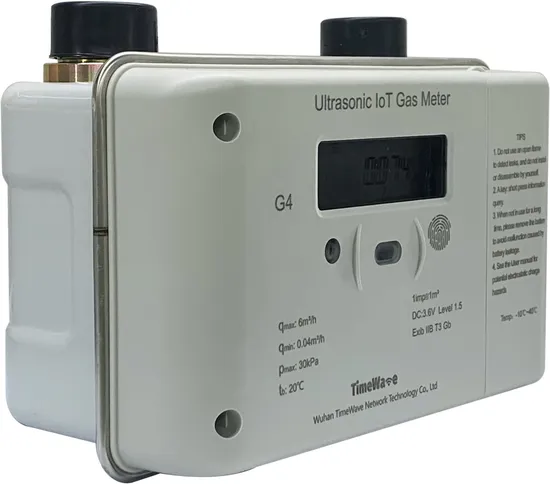

LCQ series wireless remote ultrasonic gas meter (hereinafter referred to as gas meter) is an ultrasonic gas meter carefully crafted by our company.High-precision ultrasonic transducers and advanced software algorithms are used to achieve accurate measurement, and combined with NB-IoT narrowband IoT communication technology to realize the gas meter networking function.It meets the requirements of GB/T39841-2021 "Ultrasonic Gas Meter", JJG10302007 "Ultrasonic Flow Meter".It has measurement characteristics such as high precision, strong reliability, wide range ratio, and good durability. It also has intelligent functions such as temperature and pressure correction, online monitoring, meter reading, payment, and price adjustment. The gas meter is suitable for measuring various non-corrosive gases. It can be widely used in gas metering of gas users. It is a new generation of ideal intelligent gas meter that effectively solves the measurement loss caused by the fact that the range cannot meet the actual needs and the temperature and pressure changes. Functions and Features
1. The gas meter has high measurement accuracy, adopts segmented flow coefficient correction, low initial flow rate, and wide measuring range;
2. Electronic metering, no moving parts, no mechanical loss, good durability, long service life and low failure rate;
3. It has the characteristics of anti-noise, anti-electromagnetic feld interference, anti-disassembly, and anti-reverse installation;
4. It has alarm and cut-off functions such as micro-leakage, abnormal flow, abnormal high temperature, unauthorized meter removal, constant fow, etc;
5. Adopt dual power supply design;
6. Encryption algorithm is used for remote communication data to ensure data security;
7. The gas meter has built-in temperature and pressure sensors, which can realize volume measurement under working conditions and standard conditions;
8. The unique rectifcation structure can better improve the disturbance of the fow feld;
9. Both the metering and main control modules are designed independently, without mutual interference and good reliability;
10. Strong media adaptability, automatic correction.
Technical Parameters

Parameter Name	LCQ-G6NB	LCQ-G10NB	LCQ-G16NB	LCQ-G25NB	LCQ-G40NB	LCQ-G65NB
Maximum flow(m³/h )	10	16	25	40	65	100
Minimum flow(m³/h )	0.06	0.1	0.16	0.25	0.4	0.65
Thread of inlet and outlet pipes	G1½"			G2"	G22"
Maximum pressure loss (Pa )	≤250	≤375			≤300	≤400
Center distance between inlet and outlet pipes (mm)	150			180
Valve	Have				None
Light pulse volume equivalent (L/pul )	5		10	20	30	40
Maximum working pressure (kPa)	≤50
Meter tightness	No leakage for 3 minutes under 1.5 times the maximum working pressure
Power supply method	ER34615H/3.6V
Accuracy level	1.5 Level
Indication error	qmin≤qt±3.0% qt≤q≤qmax±1.5%
Operating temperature	-10ºC ~40ºC
Storage temperature	-20ºC ~60ºC
Explosion Proof	ExibIIBT3 Gb
IP Grade	IP54
Communication network	NB-IoT/LoRaWAN/CAT.1(Choose any one)

Overall dimension


Smart Energy Meter Smart Water Meter Smart Gas Meter
Wuhan Time Wave Network Technology Co., Ltd is a high tech enterprise specializing in the application of Low Power Wide Area Network (LPWAN) core technologies to establish an energy monitoring service platform. We provide a one-stop solution and service for our clients, offering metering and communication equipment, software system platforms, project construction, and daily operation and maintenance.
We independently develop and manufacture the "Timewave" brand LPWAN smart energy meters, smart water meters, smart gas meters, and alarm systems, among other communication terminal products. Coupled with the "Timewave Cloud" energy supervision platform, which encompasses metering, meter reading, billing, management, and control of water, electricity, gas, and heat, we can provide and implement automatic meter reading and billing, carbon emission monitoring, safe electricity use, energy consumption analysis, energy-saving analysis, transformer monitoring, data center environment monitoring, and intelligent operation and maintenance. We have a wealth of experience in the practical application of water and electricity meters using LoRaWAN technology.
The "Timewave Cloud" energy supervision platform is widely used in various settings, including campuses, supermarkets, apartments, hospitals, factories, parks, buildings, railways, airports, data centers, and more.We have connected over 200,000 IoT terminals, implemented over 200 projects, and expanded our reach to over 30 provinces and cities across the country. Moreover, we provide operation and maintenance support for ground projects in multiple countries and regions, including Indonesia, Turkmenistan, Laos, Nigeria, and Mongolia.
Timewave IoT Technology is committed to solving issues related to difficult meter reading, billing, payment, energy-saving and efficiency improvement, and safe energy use. We aspire to become a leader in the field of energy IoT and energy supervision platforms.

---
