Cryogenic Oxygen - WellCare Gases, Liquid Oxygen ( LOX ) Generating Plant, The Liquid Oxygen Generator

Product Details

Product Description

Product Description

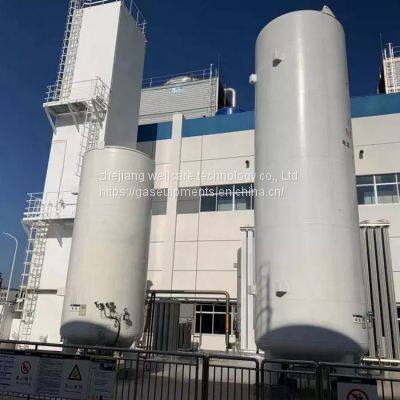

The LOX plants produce high purity liquid oxygen into a liquid tank. Oxygen gas for cylinders filling can be produced from stored liquid by means of a high pressure liquid pump and evaporation unit.
1. The WellCare Group is a world leading gases and engineering company with around 50,500 employees in more than 100 countries worldwide.
2. WellCare have supplied more than 3,000 air separation plants and maintain the highest standards of service, design and manufacture a range of containerised cryogenic air separation plants that provide high purity oxygen.
3. Comprehensive services that ensure a high level of client and customer care include:
The LOX plants produce high purity liquid oxygeninto a liquid tank. Oxygen gas for cylinders fillingcan be produced from stored liquid by means of ahigh pressure liquid pump and evaporation unit
LOX 80 is suitable for:
- Hospitals
Cylinder filling
Industrial welding
Steel industry
Chemicals
Metallurgy
Oil and gas
Technical Specifications

PRODUCTION	HK50	HK100	HK150	HK200	HK 300	HK400	HK 500
Mode1: Liquid Oxygen (Nm3/hr)	50	100	150	200	300	400	500
Liquid oxygen (L/hr)	59	118	176	235	352	469	586
Mode 2 : Liquid Nitrogen (Nm3/hr)	50	100	150	200	300	400	500
Liquid Nitrogen (L/hr)	73	145	218	290	435	578	724
PURITY
Liquid Oxygen (%)	99.7	99.7	99.7	99.7	99.7	99.7	99.7
Liquid Nitrogen (%)	99.99	99.99	99.99	99.99	99.99	99.99	99.99

---
