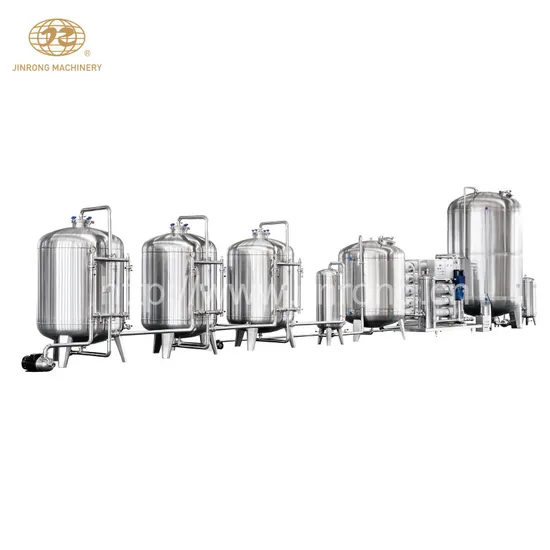

2021 High Quality Beverage Production Line Water Treatment Machine, From 33 Years History Big Factory.

Product Description

1.Silica sand filter is the equipment of hermetically sealed chamber made of 1 Cr18NiTi stainless steel which is set inside
gritted rod,therefore get filltrated and clean.The equipment is widely used in petroleum industry,pharmaceutical industry wine-making industry and beverage industry.It is a ideal equipment to produce high quality water.

2.Active carbon filter.This filter is designed for drinking water treatment.It can clear away alien colour and foreign substance from the water and can remove heavy metal such as mercury,lead,cadmium,zinc,iron,manganese and Chromium,and hydrogenate,sulphide,small amount of remaining chlorine and so on.The filter is the ideal equipment for drinking water,foodstuff,beverage industries.
3.Sodium ion-exchanging device.The exchanging device is for reducing the hardness of hard water.Raw water goes through the exchanger from top to bottom,to be softened by the sodium ion-exchanger inside the device.The positive ions of Magnesium and Calcium are exchanged with that of sodium.Then the raw water becomes soft water containing very few ions of Magnesium and Calcium.The soft water can be used for feeding water of boiler and for some industrial uses.Due to its highly dissolving ability in water,sodium ions will not form hard sediment in the boiler and can be easily removed.Raw water shall be filtered and settled with almost on suspended before coming into the ion-exchanging device.After being softened in the device,the residual hardness shall be less than 0.03mg equivalent/L.
4.The Reverse Osmosis Device is an equipment to purify the saline water with the action of pressure dillerence of semi-permeable membrane.It is called reverse osmosis,as it is counter to nalural penetration direction.Different materials have different osmotic pressures.The reverse osmosis method to adopt large OsmOtic pressures is used to obtain the purpose to separate,extract,purify and 99% glues,microbe,particulate and organic substances and etc.Can be removed with the reverse osmosis.It becomes the most ideal equipment for modern program of pure water,hyper pure water,and alrspace water.The remarkable characteristics of the equipment are shown as lower energy consumption,no pollution,simple technics,high water quality,easy to operation and maintenance.
5.YF hollow-fiber ultrafilter.This ultrafilter adopts dissymmetrical semipermeable film which is made from macromolecule material with special process.The raw liquid flows under pressure,inside or outside the the film.The macromolecule substance and colloid particles in the raw liquid are clogged at the film surface and are brought away by circulating raw liquid.Then the raw liquid becomes inspissated,furthermore,the subtance in liquid is separated,concentrated.
6.Ozone Generator

Model	10G	15G	20G	30G
Ozone output(g/h)	10	15	20	30
Electrical power supply	220V
Frequency	50/60Hz
Rated current(A)	0.45	0.55	1.1	1.65
Power(W)	520	600	840	960
Oxygen flow(L/min)	3	3	5	5
Oxygen concentration	85%±5
Output pressure (kg/cm2)	0.8±0.2	0.8±0.3	1.5±0.3	1.5±0.3
Ambient temperature	<40ºC
Ambient humidity	<70%
Ozone output interface	1/4" inner thread
Connecting cable(mm2)	3*1.0
Dimension(mm)	500*390*1200
Weight(kg)	46	50	52	55

Features: The product uses heat-resistant HQG quartz structure dielectric ( BNP patent) , the structure is extremely stable, long lifespan , high discharge efficiency , and not easy to damage in the case of back flow water ; The product consist of medical grade oil-free air compressor, dedicated heat exchangers, precise filter , automatic drainage , PSA oxygen concentration system , powerful ozone generation unit , intelligent control system; The equipment will shut down when equipment malfunction is detected, and the fault indicator on the control panel will light up; Ozone amount continuous adjustable Main components from Siemens (IGBT, IGBT module ) ; PSA five-way valve imported from Japan, SMC ; Two sets of oxygen generation unit work alternately automatically; This series of products use American zeolite molecular sieve adsorbent, separating oxygen from nitrogen in the air using pressure swing adsorption (PSA) principle, and filter harmful substances in the air , so as to obtain a high concentration oxygen in line with medical oxygen standards. PSA oxygen generating equipment provide you with the purity of 85% ± 5 oxygen to meet all requirements; Installation and operating costs far less than cylinder or liquefied oxygen ; Air source input with no additive required and lower power consumption which ensures lower total cost; The whole gas circuits work in low pressure which makes it safe and reliable; Oxygen flow rate adjustable and large amount of oxygen supply with silent operation; Easy operation and constant flow of oxygen is created on-site.
7. Ultra-Violet (UV) Sterilizer
Ultra-violet sterilizer is ideal equipment for the sterilizing of water for beverage and food industries. It features speed, no change of physical or chemical properties of water, simple operation, automatic, and safety.
Structure and characters:It appears an enclosed unit consisting of the sterilizing tube, the electrical unit and the body.The sterilizing tube is enclosed with pressure and of stainless steel, which has good reflection of ultra-violet rays and is conform to food hygiene rules. Inside the tube are the ultra-violet light and the quartz glass tube. There are entry and exit on the sterilizing tube with stainless connects, seals and flanges.The electrical unit adapts to the requirements of ultra-violet sterilizing. There are Alarm, indicating Light and Voltage instrument in the unit. In some case, two ultra-violet lights can be applied for more volume treatment of water.

---
