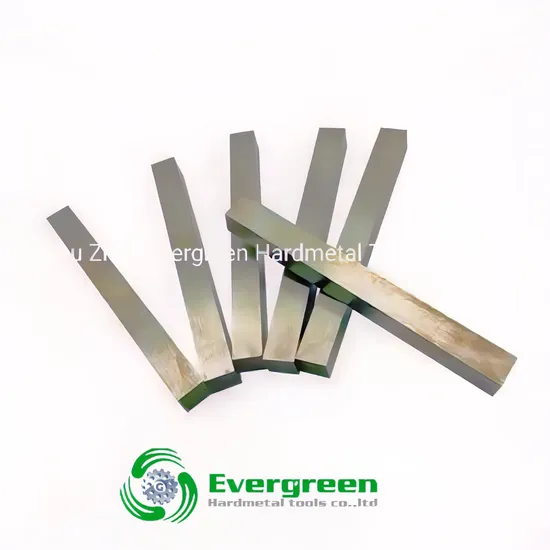

Manufacturer Supplier Tungsten Carbide Strip for Metal Working Drill Bits Milling Cutters Tungsten Carbide Strips

Product Description

Product Description Product Description
Product Parameters
Tungsten carbide strip has high hardness and high wear resistance, it is a ideal choice to used in cutting kinds of wood.
With high quality raw material and advanced equipment, we are provides customer superior quality carbide strips.
- Easy to be brazed, good wear resistance and toughness.
- Untrafine grain size raw material to keep excellent strength and hardness.
- Both standard sizes and customizes sizes are available.
Tungsten Carbide Grade specification

Grade	Density (g/cm3)	Hardness (HRA)	T.R.S (MPa)	Grain size (μm)	Composition (%)	Equal to ISO
YL10.2	14.4~14.6	≥92.2	≥4000	0.6~0.8	10% CO 90% WC	K30
YG6X	14.85~15.0	≥92.0	≥1860	0.8~1.0	6% CO 94% WC	K10
YG15	14.0~14.1	≥85.0	≥2800	1.2~2.0	15% CO 85% WC	/
YG10	14.5~14.6	≥85.5	≥2600	1.2~2.0	10% CO 90% WC	K20
YG8	14.65~14.85	≥89.5	≥2320	1.2~2.0	8% CO 92% WC	K20
YG6	14.85~15.05	≥90.0	≥2150	1.2~2.0	6% CO 94% WC	K10

Type and Size

Type	T*W*L (mm)	T (mm)	W (mm)	L (mm)
EG05	T x 5 x 320	2.0~15.0	5	320
EG06	T x 6 x 320	2.0~15.0	6	320
EG07	T x 7 x 320	2.0~15.0	7	320
EG08	T x 8 x 320	2.0~15.0	8	320
EG09	T x 9 x 320	2.0~15.0	9	320
EG10	T x 10 x 320	2.0~15.0	10	320
EG11	T x 11 x 320	2.0~15.0	11	320
EG12	T x 12 x 320	2.0~15.0	12	320
EG13	T x 13 x 320	2.0~15.0	13	320
EG14	T x 14 x 320	2.0~15.0	14	320
EG15	T x 15 x 320	2.0~15.0	15	320
EG16	T x 16 x 320	2.0~15.0	16	320
EG17	T x 17 x 320	2.0~15.0	17	320
EG18	T x 18 x 320	2.0~15.0	18	320
EG19	T x 19 x 320	2.0~15.0	19	320
EG20	T x 20 x 320	2.0~15.0	20	320
EG22	T x 22 x 320	2.0~15.0	22	320
EG25	T x 25 x 320	2.0~15.0	25	320
EG28	T x 28 x 320	2.0~15.0	28	320
EG30	T x 30 x 320	2.0~15.0	30	320
EG32	T x 32 x 320	2.0~15.0	32	320
EG35	T x 35 x 320	2.0~15.0	35	320
EG40	T x 40 x 320	2.0~15.0	40	320
EG45	T x 45 x 320	2.0~15.0	45	320
EG50	T x 50 x 320	2.0~15.0	50	320
EG55	T x 55 x 320	2.0~15.0	55	320

Dimension and Tolerance

Dimensions and Tolerance (mm)
Length(mm)	Tolerance	Width(mm)	Tolerance	H	Tolerance
<=80<>	+0/+1.6	<=10<>	+0/+0.5	<=3.0<>	+0/+0.3
>80~100	+0/+2.5	>10~20	+0/+0.6	>3~5	+0/+0.4
>100~150	+0/+3.0	>20~30	+0/+0.6	>5~8	+0/0.5
>150~200	+0/+4.0	>30~40	+0/+1.0	>8~10	+0/+0.8
>200~300	+0/+5.0	>50	+0/+1.5	>10	+0/+0.8
>300	+0/+6.0	----	----	----	----
Length:330 or 310 mm or cut to lenths upon requirements.

Production Process

welcome to contact us for E-catalog and latest discount
EVERGREEN HARDMETAL TOOLS CO.,LTD

---
