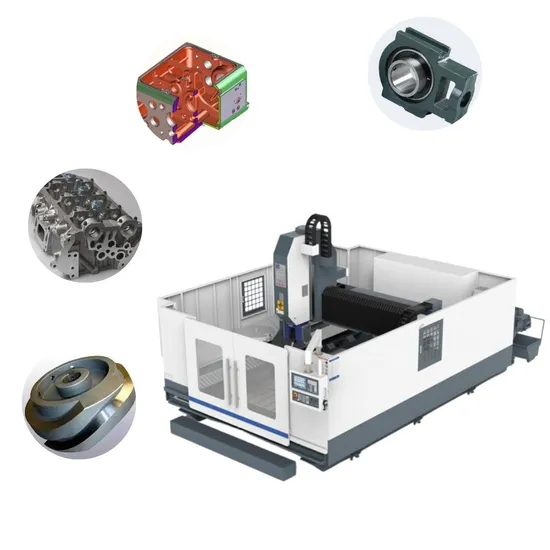

High Precision 5-Axis Gantry Machining Center Gmc Phe5d-CNC3020 CNC-Machine-Tools Milling-Machine Fabricado En China

Product Description

Product Description

Features:
1.Integrated with the function of milling, drilling, tapping,etc.
2.Equipped with international level cnc operate system.
3.Extra-long x-axis travel,length can be customized. configure multi-station to realize loading and unloading and unloading while processing.
4.Various configuration profile machining center are optional ,which can meet the processing needs of aluminum, steel,copper and non-metallic 5.Materials, especially for narrow and long workpieces.
6.Widely used in the processing of narrow and long workpieces in industries such as automobiles, aerospace, and machinery manufacturing.
7.The PHE5D CNC machining center can mill parts of various configurations. precision A/C head, which has high performancein 5-axis machining.
The SIEMENS CNC control is used for this model.
Standard automatic chip conveyor is easy for chip removal.
The PHE5D is widely used in the machining of multi-angle and special shapemetal parts for the automotive industry, machine building industry, and othermetalmachining needs. Detailed Photos

Model No.	PHE5D-CNC3020
Travels
X-Axis	3000mm
Y-Axis	1850mm(3-axis)1400mm(4-axis)
Z-Axis	530mm
A-Axis	±185°
C-Axis	±320°
Spindle
Max speed	24000rpm
Taper	HSK A63
Tool Magazine
Type	Umbrella type
Capacity	12 pcs
Max tool Diameter	75mm
Length/Weight Tool-to-tool time	300mm/8kg/2sec
Axis feed rates	3 axis screw	Rack and pinion
Rapid on X	42m/min	60m/min
Rapid on Y	48/48 m/min	48/60 m/min
Rapid on Z	48/48 m/min	48/60 m/min
X/Y/Z Programmable cutting feed	20000 mm/min	15000 mm/min
Operating system	SIEMENS
Motor Power
Spindle driven motor	20kW	20kW
X-Axis Drive motor	5.4+5.4kW	3.1+3.1kW
Y-Axis Drive motor	5.4kW	3.1kW
Z-Axis Drive motor	4.3kW	4.3kW
Lubrication and cooling system
Lubrication system	Automatic
Coolant system	Spray/Water base
Accuracy
X-Axis Positioning accuracy	0.025mm	0.03mm
Y-Axis Positioning accuracy	0.02mm	0.03mm
Z-Axis Positioning accuracy	0.015mm	0.015mm
X/Y/Z-Axis Repeat positioning accuracy	0.01mm	0.01mm
Mechanical Specification
Required pneumatic pressure	6kg/cm²
Machine height	3200mm
Machine footprint(LxW)	7100x4100mm
Machine Weight	14000kg

Workshop

FAQ

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
