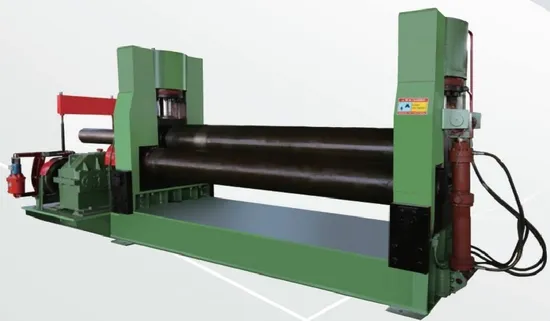

W11y Hydraulic Symmetrical 3-Roller Plate Rolling Machine

Product Description

Introduce:
The hydraulic symmetrical 3-roll rolling machine has 3 symmetrically
arranged rolls. The upper roll is located at the center of two lower rolls and is
directly driven by dual hydraulic cylinders to move vertically, The output gear
on main speed, reducer is used to mesh the gears of both lower rolls for
rotation to provide torque for the rolling plate, Metal plate is located among
three working rolls and subsequently continuously bent under the pressure of
upper roll and rotation of lower rolls to generate permanent plastic
deformation on the plate to roll the plate to the required shape, such as
cylinder, taper cylinder of arc.
Below are cases:
Technical parameters for 3-roller symmetric plate rolling machine

Model	Max.rolling thickness mm	Max.plate width mm	Rolling speed m/min	Min full loading drpat mm	Diameter of uppe roller mm	Diameter of lower roller mm	Central diamete between ottom shafts mm	Motor Power KW	Motor Powe KW
W11Y-30×2000	30	2000	4	1200	360	290	480	7.5	22
W11Y-25×2500	25	2500	4	1200	370	300	480	7.5	22
W11Y-30×2500	30	2500	4	1200	420	360	550	11	30
W11Y-25×3000	25	3000	4	1200	430	370	550	11	30
W11Y-30×3000	30	3000	4	1200	450	390	600	11	30
W11Y-40×2500	40	2500	3.5	1400	500	400	600	15	37
W11Y-40×3000	40	3000	3.5	1600	540	440	600	18.5	45
W11Y-50×3000	50	3000	3.5	2000	580	480	750	22	55
W11Y-60×3000	60	3000	3.5	2400	660	560	800	30	75
W11Y-70×3000	70	3000	3.5	2800	710	620	850	37	90
W11Y-80×3000	80	3000	3.5	3200	770	680	900	37	90
W11Y-90×3000	90	3000	3.5	3600	820	730	950	45	110
W11Y-100×3000	100	3000	3.5	4000	860	770	1000	45	110
W11Y-110×3000	110	3000	3.5	4400	900	810	1080	55	132
W11Y-120×3000	120	3000	3.5	4800	950	860	1160	55	132

---
