Hot Sell Nvidia Jetson Aorin Nano 4GB with WiFi 4G/5g Ai Box

Product Description

Based on NVIDIA Jetson Orin Nano core board, FC2108PG has 34TOPS AI computing power, rich interfaces to support sensors commonly used in self-driving vehicles, and can be used in robots, low-speed unmanned driving, smart factories, intelligent transportation and other scenes. It is an ideal carrier for deploying AI computing power at the edge for deep learning.

Support 4G/5G

Multiplex network port

IP65

Rich interface

Product Parameters

Technical parameters
System	AI platform	Jetson Orin Nano
	AI computing power	Super mode: 34TOPS
	GPU	512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
	CPU	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
	Video coding	1080p30 supported by 1-2 CPU cores
	Video decoding	1×4K60 (H.265)2×4K30 (H.265) 5×1080p60 (H.265)11×1080p30 (H.265)
	Memory	4GB 64-bit LPDDR5 34 GB/s
	Storage/expansion	(Supports external NVMe)

Hardware interface
Wired network	Interface	1 × M12 gigabit network port and 4 × M12 gigabit network port (shared IP) supporting POE (at standard) (standard)
Wireless network	WIFI	2.4GHz/5GHz dual-band WiFi (optional)
	5G/4G	4G Full Netcom /5G Full Netcom (optional)
	GNSS	Support multi-mode (BD, GPS), meter/centimeter /RTK/ inertial navigation (optional)
	Other	1×SIM card
Multi-media	Display	1×HDMI
	Audio	/
I/O	USB	2×USB3.0 Type-A, 1×Type-C OTG, 1×Type-C Debug
	Serial port	1×RS232, 1×RS485
	CAN	1×CAN-FD, 1×SPI-CAN-FD
	Multi-functional interface	2*GPI+2*GPO (3.3V@1mA with isolation), 2*GPI+2*GPO (12V@1mA with isolation)
Interface	M.2 KEY E	WiFi
	M.2 KEY M	1×2280 PCIE SSD
Other	RTC	1×RTC
	Synchronous system	Support PTP, PPS output/input, PWM output (optional)
	GMSL camera interface	8×GMSL2
Other	Power input	9-36V, supporting ACC
	Power interface	M16-6PIN navigation mark interface
	Keys/indicators	Two buttons and four indicator lights for Recover/Rest

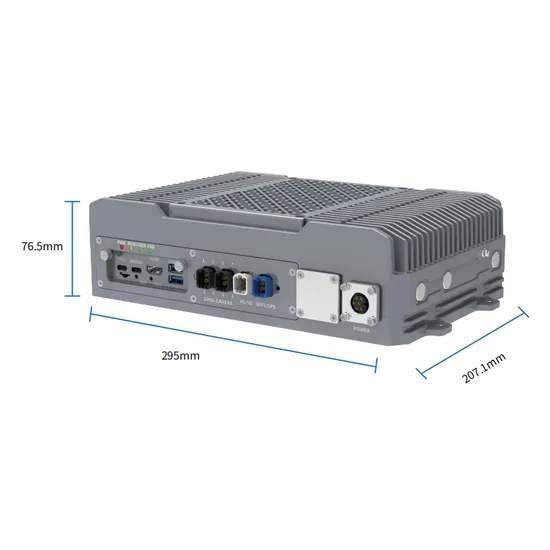

Physical parameters	Specifications/dimensions	295mm × 207.1mm × 76.5mm
Environment	Operating temperature	-20ºC to 60ºC (standard)/-40ºC to 70ºC (optional)
	Operating humidity	5% to 95%, no condensation
	Heat dissipation mode	Fan cooling

Detailed Photos
Shipping list

Power adapter (19V-3.42A)	1	Standard
TYPE-C data cable	1	Standard
M12 orthographic network cable	2	Standard
National standard power cord	1	Standard
M16 6PIN external power adapter cord _ 1m	1	Standard
DC 5.5*2.5MM power cord that is divided into two parts	1	Standard
GPIO/RS485	1	Standard
CAN/RS232	1	Standard
GMSL camera four-in-one line	2	Standard
Fakra_WiFi/GPS antenna	1	Optional
Fakra_4G/5G antenna	1	Optional
TX08P MULTI IO1	1	Optional
TX08P MULTI IO2	1	Optional

FAQ 1. Are you factory or trading company?
We are factory with over 20 R & D engineers, our price is very competitive, after-sales service is guaranteed.

2. Do you provide OEM/ODM service?
Yes, OEM/ODM service is available.

3. What payment method do you accept?
T/T, Paypal, L/C, etc.

4. What is your lead time?
1 day for edge computing development kit, 3 days for edge computing box, 30 days for customization service.

5. What is the warranty?
2 years. We have a professional team dealing with after-sales issues.

---
