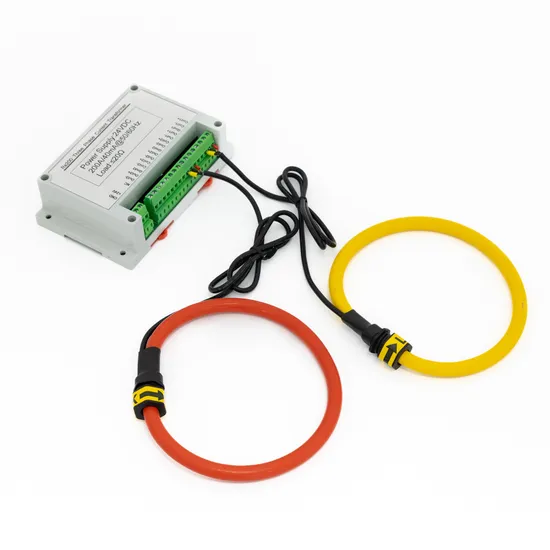

200A/40mA Flexible Rope Tye Rogowsi Coil

Product Description

Split Core Flexible Rogowski Coil with high frequency
Split Rogowski Coil current sensors are designed for fast and easy installation on existing primary conductors/ BUS bars. The split design permits non-contact AC current or current pulse measurement without requiring that the primary conductor be taken offline and disconnected for the current sensor installation. This method provides for the safe, easy and portable measurement of current.
A current sensor that is based upon the Rogowski Coil principle offers significant advantages over the standard magnetic core current transformer products. Specifically, since the sensor does not incorporate a magnetic core, magnetic core saturation (the point where incremental increases in magnetic flux are not reflected in proportional increases in secondary signal outputs) is avoided
Key specifications

Input current range:0-10000A
Output :Flexible Rogowski coils 0.333Vac,100mV/per 1000A, 0-5Vac
Bandwidth :1Hz-1MHz
Accuracy :≤±1%
Response time :<10ms
Auxiliary power supply :6-12VDC
Coil length :≤2m
Status indicator :LED light
Storage temperature range :-40ºC-70ºC
Operating temperature range :-20ºC-55ºC
Storage humidity range :10%-90% without dew
Operating humidity range :10%-90% without dew

Rated current (rms)	10A-100KA
Output	mV (without integrator)
	0-5V AC(with integrator)
Power supply	9V-24V
Coil length	20cm-200cm
Tube	UL material
Wire lead	Shielded cable
Isolation voltage	3500V
Operating temperature	-25ºC-+70ºC
Frequency	50Hz-60Hz
Accuracy	±1%

Drawing of Split Core Flexible Rogowski Coil:
Input-output characteristic curve@50Hz:
Test of Rogowski coil:
Our hot sales :
Note * We provide FREE samples for your test!
Purchase only when you are satisfied with the FREE samples.
Please contact us to apply FREE Trial NOW !! * Please let us know model, input current ,output signal,cable leads length
* Or tell us your techincal requirement for the current transformer selection.
* OEM/ODM is welcomed.

Jiangyin Spark Electronic Technology Co.,ltd
Certification: ISO9001, UL ,CE, ROSH,TUV
( Your reliable partner for Split Core Current Transformer and Rogowski Coils. )
Address: 263 Dong wai huan road, jiangyin City, Jiangsu Province,214432, China.

Web: sparkelectronic.en.made-in-china.com Package * All our CT will be well packed with bubble & white box in a Carton.
* You can design your own label and package
* Can be netural packing or OEM. Shipping * Products are shipped via UPS / DHL/ FedEx / TNT, etc. (door to door), or air & sea shipment for larger qty.
* L/T: 3-7 days upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
* Shipping via DHL. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country. Warranty * We provide 1 year warranty.
* If the product is defective, please notify us within 3 days after receiving.
* All products must be returned on their original condition, in order to qualify for a refund or exchange of goods. Our Commitment * Better Price than other suppliers for you because of Factory Direct Sale;
* Better Quality than before caused by our 20+ years experience about current transformer;
* Fast Delivery made by our Enthusiasm;
* Timing Reply in 24 hours all about our TEAM's Passion & Patience.

---
