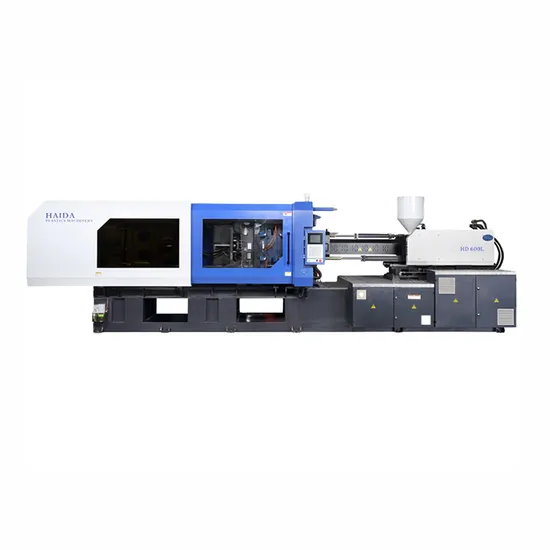

Haida HD600L 600ton Injection Moulding Machine

Product Description

Product Description
L series High precision Servo Energy-saving Injection Machine is a new series model launched on the base of original series, to meet higher requirement of customers. The overall standardization has implemented for the new series models, and the product structure has been simplified to ensure maximum reliability. Apply latest 3D control technology to ensure consistent high quality at lowest price. These products have adopted ergonomics design and components of famous brands, to ensure product quality of every detail. HAIDA L series high precision servo energy-saving injection machine with more advanced design concept, more reliable hardware configuration and higher cost performance is an ideal choice for mid-high end hydraulic machine users, and has built a new standard in the field of mid-high injection machine.
Detailed Photos
Product Parameters

ITEM		UNIT	DATA- HD600L
Injection Unit	Screw Diameter	mm	80	85	90
	Screw L/D Ratio	L/D	22.8	21.5	20.3
	Injection Volume	cm3	2212	2497	2799
	Shot Weight	g	2013	2272	2547
	Injection Pressure	Mpa	184	163	146
Clamping Unit	Clamping Force	KN	6000
	Opening Stroke	mm	900
	Space Between Tie-Bars	mm	880x880
	Mould Thickness(Min-Max)	mm	380-880
	Hydraulic Ejection	KN	181
	Ejector Stroke	mm	240
General	Pump Pressure	Mpa	16
	Motor Power	KW	60
	Heater	KW	32.5
	Machine Dimension	m	9.02x2.3x2.26
	Machine Weight	T	24.9
	Mould Orientation Ring Diameter	mm	Φ160
	Nozzle Radius	mm	SR15

Packaging & Shipping
After Sales Service
Company Profile
Ningbo Haida Plastic Machinery Co.,ltd is a manufacture specilized in manufacturing HAIDA series automatic plastic injection molding machine, vice president of China Plastic Machine Industry Association.
Established in 1992, the company has been devoted to development, production and sales of efficient, personalized and cost-effective injection machine.
-One of TOP 10 enterprises in plastic injection machine industry of China, company area over 2,000,000 square meters; Over 500 employees;
-Passed ISO9001, ISO14001, OHSAS18001 and CE Certification;
-Stronge R & D capability. More than 100 types of injection machine from 50 tons to 3300 tons are in production.
-More than 60 sales and service agencies at home and abroad.

---
