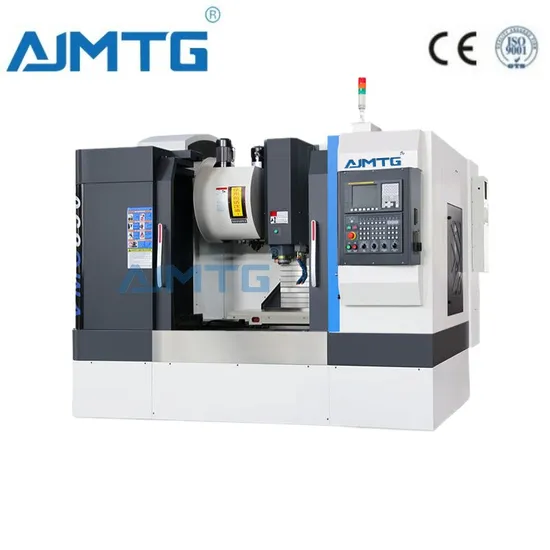

High Precision CNC Graphite Milling Machine

US$35,000.00

1-4 Set

US$17,000.00

5+ Set

Basic Info.

Model NO.

VMC1060

Application

Metal

Process Usage

Metal-Cutting CNC Machine Tools

Movement Method

Linear Control

Control Method

Closed-Loop Control

Numerical Control

CNC/MNC

Performance Classification

High-End CNC Machine Tools

Certification

CE, ISO 9001

Condition

New

Worktable Size

500X1000, 600X1200

Transport Package

Good Wooden Case

Specification

2800x2500x2700

Trademark

AJMTG

Origin

China

HS Code

8457101000

Production Capacity

1200 Sets Per Year

Product Description

Welcome to Nantong AJ Industry Limited! Explore our top factory for High Precision CNC Graphite Milling Machines. Send inquiries and visit us today!
Explore Nantong AJ's VMC series for high-precision CNC milling. Choose from 3/4/5-axis options for efficient metal cutting and drilling. Elevate your machining with our vertical CNC machines.
Discover the High Precision CNC Graphite Milling Machine from Nantong AJ Industry Limited. Ideal for vertical CNC machining with 3-5 axis capabilities. Enhance your machining precision today!

Machining range	X axis travel	800mm
	Y axis travel	500mm
	Z axis travel	500mm
	Spindle nose to worktable	150-650mm
	Spindle to column guide	550mm
Worktable	Worktable size	1000x500mm
	T slot	18X5X90mm
	Weight load	500kgs
Spindle specification	Spindle	8000rpm belt drive Japan make
	Spindle motor	7.5kw
	Spindle taper	BT40(Ø140)
Feed system	G00 fast feed	48/48/36m/min
	G01 cutting feed	1-10000mm/min
	Servo motor	223kw
Tool system	Capacity	24 tools arm type Taiwan make
Main parts		Make
Ball screw		Taiwan C3 grade diameter 40mm, pitch 12/16mm
Linear guide		Taiwan HIWIN or Germany 35mm pin roller type
Spindle		Taiwan diameter 140mm , 8000 rpm
Tool magazine		Taiwan BT40-24 tools arm type
Bearing for 3 axis		Germany or Japan Nachi, Screw Angle Support Bearing 30X62

Export Certificate for Nantong AJ Industry Limited's High Precision CNC Graphite Milling Machine. Buy now for top-notch CNC machining!
