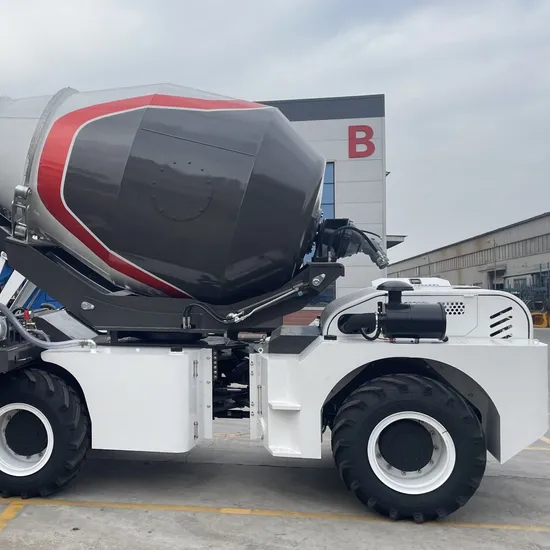

Hot Sale Big Capacity 6.5m3 Self Loading Concrete Mixer Truck with Scales

Product Description

Product Description
1. Brief introduction of our self loading concrete mixer
Self-loading concrete mixer is a multi-function concrete production equipment. It can load, mix materials and then deliver concrete to the job site. It combines the function of wheel loader, concrete batching plant and concrete transit mixer. It is very suitable for small and narrow construction sites, like road construction, road repair, small building construction etc. It is very cost-saving for small and medium construction projects.
2. Self loading concrete mixer we have
Currently, we have 1.8m3, 2.6m3, 3.2m3, 4m3, 5.5m3 and 6.5 m3 self-loading concrete mixer.
Product Parameters
1. Specification and pictures of our self loading concrete mixer
1) 1.8m3 self loading concrete mixer

Item	SLM1.8 Self Loading Concrete Mixer
Drum Volume	2,680 L
Mixing Capacity Per Batch	1.8 m3
Productivity	7.2 m3/h
Diesel Engine Brand	490 YUCHAI Supercharged Engine
Diesel Engine Power	55 kw
Gearbox Model	ZL-265 Power Shift Gearbox
Gear Shift	4 forward 4 back
Fuel Tank	63 L
Total Hydraulic System Capacity	63 L
Oil Tank	16 L
Hydraulic Reducer	HJ80-43
Hydraulic Pump	CBFC 50/40
Hydraulic Motor	BM5-160
Water Tank Volume	400 L
Water Supply	Hydraulic Water Pump
Water Weighing	Time Relay
Wheelbase	2,660 mm
Drive Form	Torque Converter
Drum Rotation Angle	270º
Drum Rotary Speed	13 r/min
Max. Speed	30 km/h
Max. Gradeability	30º
Mini. Turning Radius	5,270 mm
Mini. Ground Clearance	280 mm
Overall Dimensions (L*W*H)	7,300*2,650*3,750 mm
Total Weight	5,666 kg
Tyre	23.5/70 Radial Tire
Wheel Side Reduction Bridge	1 Set
Camera	3 Sets
Air Conditioner	1 Set
Aggregate & Cement Weighing System	1 Set

2) 2.6m3 self loading concrete mixer

Item	SLM2.6 Self Loading Concrete Mixer
Drum Volume	3,580 L
Mixing Capacity Per Batch	2.6 m3
Productivity	10.4 m3/h
Diesel Engine Brand	YUCHAI 4102 Supercharged Engine
Diesel Engine Power	78 kw
Gearbox Model	ZL-280 Power Shift Gearbox
Gear Shift	4 forward 4 back
Fuel Tank	75 L
Total Hydraulic System Capacity	75 L
Oil Tank	16 L
Hydraulic Reducer	HJ80-43
Hydraulic Pump	CBGQ 2050/2032
Hydraulic Motor	BM5-160
Water Tank Volume	500 L
Water Supply	Hydraulic Water Pump
Water Weighing	Time Relay
Wheelbase	2,600 mm
Drive Form	Torque Converter
Drum Rotation Angle	270º
Drum Rotary Speed	13 r/min
Max. Speed	30 km/h
Max. Gradeability	30º
Mini. Turning Radius	5,300 mm
Mini. Ground Clearance	380 mm
Overall Dimensions (L*W*H)	7,860*2,750*4,100 mm
Total Weight	6,500 kg
Tire	23.5/70 Radial Tire
Wheel Side Reduction Bridge	1 Set
Camera	3 Sets
Air Conditioner	1 Set
Aggregate & Cement Weighing System	1 Set

3) 3.5m3 self loading concrete mixer

Item	SLM3.5 Self Loading Concrete Mixer
Drum Volume	4,740 L
Mixing Capacity Per Batch	3.5 m3
Productivity	14 m3/h
Diesel Engine Brand	YUCHAI 4105 Supercharged Engine
Diesel Engine Power	85 kw
Gearbox Model	ZL-280 Power Shift Gearbox
Gear Shift	4 forward 4 back
Fuel Tank	75 L
Total Hydraulic System Capacity	75 L
Oil Tank	16 L
Hydraulic Reducer	HJ80-43
Hydraulic Pump	CBGQ 2040/2080
Hydraulic Motor	BM5-160
Water Tank Volume	620 L
Water Supply	Hydraulic Water Pump
Water Weighing	Time Relay
Wheelbase	2,900 mm
Drive Form	Torque Converter
Drum Rotation Angle	270º
Drum Rotary Speed	13 r/min
Max. Speed	30 km/h
Max. Gradeability	30º
Mini. Turning Radius	5,300 mm
Mini. Ground Clearance	380 mm
Overall Dimensions (L*W*H)	7,830*2,680*4,170 mm
Total Weight	7,500 kg
Tire	23.5/70 Radial Tire
Wheel Side Reduction Bridge	1 Set
Camera	3 Sets
Air Conditioner	1 Set
Aggregate & Cement Weighing System	1 Set

4) 4m3 self loading concrete mixer

Item	SLM4 Self Loading Concrete Mixer
Productivity	16 m3/h
Diesel Engine Brand	YUCHAI YCD4J22G
Diesel Engine Power	85 kw
Gearbox Model	ZL-280 Power Shift Gearbox
Gear Shift	4 forward 4 back
Fuel Tank	230 L
Total Hydraulic System Capacity	170 L
Oil Tank	16 L
Hydraulic Reducer	KY07-5-J
Hydraulic Pump	Interpump
Hydraulic Motor	HAA2FM56/ 61W-VTD527
Water Tank Volume	660 L
Water Supply	Hydraulic Water Pump
Water Weighing	Time Relay
Wheelbase	2,480 mm
Drive Form	Torque Converter
Drum Rotation Angle	270º
Drum Rotary Speed	17 r/min
Max. Speed	35 km/h
Max. Gradeability	45º
Mini. Turning Radius	4,800 mm
Mini. Ground Clearance	330 mm
Overall Dimensions (L*W*H)	7640*2870*4750 mm
Total Weight	9 T
Tire	1670-22.5 Wire Bead (Front Axle Equipped with Double Tires)
Loading Axle Capacity	20 T
Camera	3 Sets
High Pressure Cleaning Pump	1 Set
Aggregate & Cement Weighing System	1 Set

5) 5.5m3 self loading concrete mixer

Item	SLM5.5 Self Loading Concrete Mixer (Two-way Driving)
Drum Volume	7,800 L
Mixing Capacity Per Batch	5,5 m3
Productivity	22 m3/h
Diesel Engine Brand	FAW XICHAI 6110 Supercharged Engine
Diesel Engine Power	110 kw
Gearbox Model	ZL-315 Power Shift Gearbox
Gear Shift	4 forward 4 back
Fuel Tank	180 L
Hydraulic Oil Tank	180 L
Engine Oil Tank	16 L
Hydraulic Reducer	HJ80-43
Hydraulic Pump	CBGQ 2050/2032
Hydraulic Motor	USA SUNNY56
Water Tank Volume	860 L
Water Supply	Hydraulic Water Pump
Water Weighing	Time Relay
Wheelbase	3,350 mm
Drive Form	Torque Converter
Drum Rotation Angle	270º
Drum Rotary Speed	20 r/min
Max. Speed	42 km/h
Max. Gradeability	45º
Mini. Turning Radius	6,200 mm
Mini. Ground Clearance	380 mm
Overall Dimensions (L*W*H)	8,450*3,100*4,580 mm
Total Weight	11.2 T
Tire	1670-22.5 Wire Bead (Front Axle Equipped with Double Tires)
Loading Axle Capacity	20 T
Camera	3 Sets
High Pressure Cleaning Pump	1 Set
Aggregate & Cement Weighing System	1 Set

6) 6.5m3 self loading concrete mixer

Item	SLM6.5 Self Loading Concrete Mixer
Drum Volume	9,000 L
Mixing Capacity Per Batch	6,5 m3
Productivity	26 m3/h
Diesel Engine Brand	Weichai 6105 Supercharged Engine
Diesel Engine Power	92 kw
Gearbox Model	ZL-315 Power Shift Gearbox
Gear Shift	4 forward 4 back
Fuel Tank	370 L
Hydraulic Oil Tank	278 L
Engine Oil Tank	16 L
Reducer	KY07-5-J
Hydraulic Pump	Interpump
Hydraulic Motor	USA SUNNY63
Water Tank Volume	1,465 L
Water Supply	Hydraulic Water Pump
Water Weighing	Time Relay
Wheelbase	2,850 mm
Drive Form	Torque Converter
Drum Rotation Angle	290º
Drum Rotary Speed	16.5 r/min
Max. Speed	40 km/h
Max. Gradeability	45º
Mini. Turning Radius	4,800 mm
Mini. Ground Clearance	350 mm
Overall Dimensions (L*W*H)	8,450*3,050*4,830 mm
Total Weight	12.52 T
Tire	100R24 (Double High Pressure Tire)
Four Wheel Steering Drive Bridge	15 T
Camera	3 Sets
Imported Piston Motor	1 Set
Aggregate & Cement Weighing System	1 Set

Detailed Photos
Factory pictures

---
