Basic Info.
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Computerized
Computerized
Certification
CE, ISO9001:2008, QS, QC
Energy
Color Can Do Base on Customer
Transport Package
Wooden Case
Specification
10.7x2.25X2.75m
Production Capacity
10set
Packaging & Delivery
Package Size
890.00cm * 230.00cm * 210.00cm
Package Gross Weight
8700.000kg
Product Description

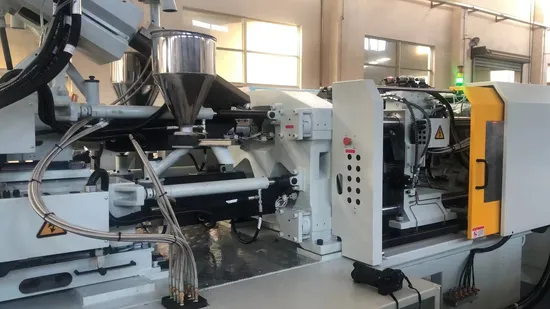

G-PLAS machinery do Double color injection molding machine.
Servo Energy-saving Plastic Injection Moulding MachineIt is suitable for different kinds of plastic products. High quality and reasonable machine.We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 100 to 1800Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification.
Product Description
Platen Drawings:
Parameters:
STYLE SPECIFICATION | G-PLAS/220 |
SCREW TYPE | B | C |
Injection Unit |
Screw diameter | mm | 45 | 50 |
Screw L/D ratio | L/D | 22 | 19.9 |
Shot volume(theoretical) | CM3 | 229 | 267 |
Injection weight(PS) | g | 200 | 221 |
Injection rate | g/s | 110 | 180 |
Injection pressure | MPA | 175 | 183 |
Screw speed | rpm | 190 |
Clamping Unit |
Clamping force | KN | 2200 |
Open stroke | mm | 250 |
Space between tie-bars(W*H) | mm | 580*580 |
Max mould height | mm | 580 |
Min mould height | mm | 550 |
Ejector stroke | mm | 150 |
Ejector force | KN | 28X2 |
Others |
Max pump pressure | MPA | 16 |
Pump Motor power | KW | 18.5+15 |
Heating power | KW | 9.9+9.9 |
Numbers of heating area | Segment | 5+1 |
Machine dimension(L*W*H) | M | 9.15*2.3*2.75 |
Oil tank cubage | L | 300 |
Machine weight | TON | 8 |
OUR products brand :
| Description | Brand |
Electric Unit | Controller | EST/Techmation/KeQiang - CHINA - Austria |
Servo driver | INOVANCE/ DELTA - China |
Servo motor | Phase - Italy venture |
Air-switch | Simens - Germany |
Thermal relay | Simens - Germany |
AC Contactor | Siemens - Germany |
Photoelectric switch | SICK - Germany |
Siemens | |
Transducer | JS/Fort - USA joint venture Novo - Germany |
Limited switch | Siemens - France |
Hydraulic Unit | Internal gear pump | Sumitomo - Japan |
Hydraulic Valve | Yuken - Japan Rexroth - Germany |
Proportional Valve | HP - Taiwan |
Hy. motor (Injection) | Intermot - Italy venture |
Hy. motor (Adjustment) | Eaton - America |
Pressure sensor | Keller - Swiss |
Oil Seal | HALITE - UK |
Lubrication system | Chaorun - Japan joint venture |
Mechanical Unit | Description |
Platen casting | GGG-50 |
Toggle casting | GGG-50 |
Tie bar | 42CrMo4V |
Toggle pin | 42CrMo4V |
Screw | 34CrAlMo5(1.8507) |
Barrel | 34CrAlMo5(1.8507) |
Nozzle | 34CrAlMo5(1.8507) |
Screw tip | DIN1.2344 |
Check ring | DIN1.2344 |
Thrust ring | DIN1.2344 |
FAQ:
For choosing proper machine and saving your time, please read below questions carefully and send your inquiry soon , thanks .
1.what material you will use (PP PE or PET ?)
2.weight for plastic product
3.pictures for plastic product (including dimension for plastic product)
4.what output per hour do you need ?
5.Other requirements about the machine you want.
Turnkey project service:
1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we can also provide the raw material to the customer if you need.
4. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except TWO year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
By the way , Our company is about 110 km away from Shanghai(1.5 hour bus driving from shanghai airport) . Warmly welcome you to visit our factory at any time.
>>
