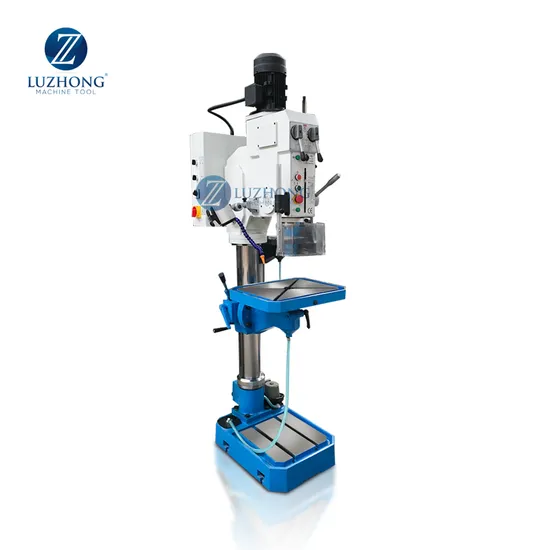

Vertical Z5045C conventional high precision drilling machine with CE

Product Description

Vertical Z5045C conventional high precision drilling machine with CE
Product Description


Product Parameters

SPECIFICATIONS	Units	Z5045C
Max. drilling dia.	mm	45
Spindle taper	-	MT4
Spindle travel	mm	130
Spindle speed steps	-	6
Spindle speed range	rpm/50Hz	80-1250
	rpm/60Hz	95-1500
Distance between spindle nose and table surface		700
Distance between spindle nose and stand table	mm	1125
Distance from spindle axis to column surface	mm	283
Spindle box travel	mm	250
Spindle box swivel angle (horizontal/perpendicular)		360/±90°
Table size	mm	730*210
Table travel(X/Y)	mm	500*205
Table vertical travel	mm	570
Stand table size	mm	417*416
Main motor power	kw	1.5
Main motor speed	rpm	1400
Machine weight	kg	530
Overall dimension	mm	1000*950*1850

Detailed Photos

Company Profile

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
