Sm Fiber 1X16 PLC Splitter Casette Type with Sc/Upc Connector

Product Description

★Description

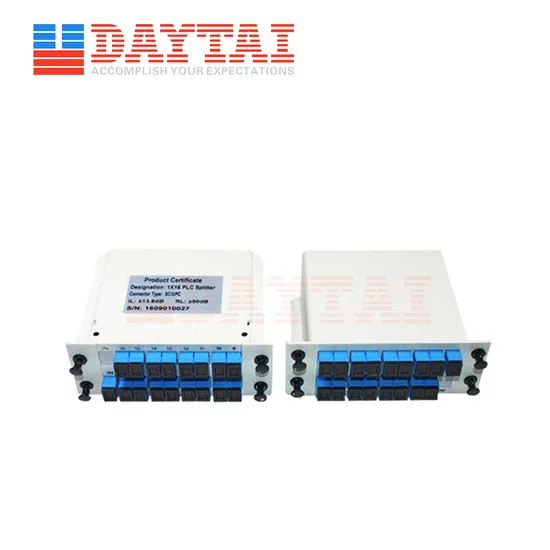

1x16 PLC Splitter Casette type,SM fiber, with SC/UPC connector.
★Features
⊙FTTH
⊙Reliable
⊙Monitoring
⊙Smaller size
⊙CATV System
⊙Good Uniformity
⊙Network Protection
⊙Low Polarization loss
⊙Access/PON Distribution
⊙Not Sensitive to wavelengths
★Optical performance
Test can be performed on any channel to meet the following requirement:

Category	Specification
Working Wavelength	nm	1260~1650
Test Wavelength	nm	1310&1490&1550
Insertion Loss	dB	≤4.1
Channel Uniformity	dB	≤0.6
Polarization Dependent Loss-PDL	dB	≤0.2
Directivity	dB	≥55
Return Loss	dB	≥50(UPC)≥55(APC)
Repeatability	dB	≤0.1
Interchangeability	dB	≤0.2
Operating Temperature	ºC	-40~+85

---
