Product Description
Pipe & Flange | Cutting | Beveling | Facing | Drilling | Boring

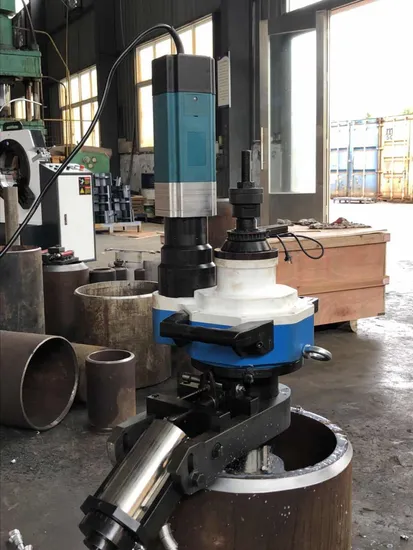

II-PIPE BEVELING MACHINE
OVERVIEW
II-PIPE BEVELING MACHINE is a portable ID mounted machine, which adopts automatically feed mechanism, and the bevel angel can be adjustable. The machine can be used for beveling thick pipe and prepare for welding flange faces.With the special structure designing, the tool stroke can be fine-turning. Auto-feeding and Manual -feeding can be easily and freely chosen. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel.It is widely applied in heavy type pipe lines of Petroleum, chemical natural gas, power supply construction, boiler and nuclear power.
FEATURES
1,Cold cutting, without influence the material of the pipe
2,ID mounted, adopt T structure
3,Varity of beveling shape: U, Single-V, double-V,J beveling
4,It can also be used for repairing inner wall and deep hole processing.
5,Working range:12.5-330mm
6,Driven motor: Pneumatic and Electric
7,Customized machine is acceptable
CAPABILTY
1,Pipe end beveling
2,Inside beveling
3,Pipe facing
BEVELING SHAPE
SPECIFICATION:
Model
| Working range
(mm)
| Wall thickness
(mm)
| Rated power
( kw) | Rotating Speed
(rpm)
|
| electric | Pneumatic |
| S8-II | QS8-II | Ф80-240
| ≤75
| 1.43 | 16
|
| S12-II | QS12-II | Ф150-330
| ≤75
| 1.43
| 14
|
| S24-II | QS24-II | Ф300-600
| ≤ 75
| 1.43
| 10
|
| S32-II | QS32-II | Ф600-820
| ≤ 75
| 2.0
| 7
|
Technical Parameters:
Pneumatic: Pneumatic motor drive, air pressure 0.8 ~ 1.0Mpa, air consumption 1500 ~ 3500L / min;
electric: Overtone motor drive, power 110V or 220V optional, power: 1.7-2.2KW, frequency: 50 ~ 60Hz;
TOOLING
other beveling shape, angle and pipe material, please declare before order
Integrated tool
can be reused by grinding
Material:M42 and M35
Standard supply
Insert tool
Insert same, different angle holder
HolderMaterial: HSS ;
Insert material: Cermet or Carbide
Optional
>>
