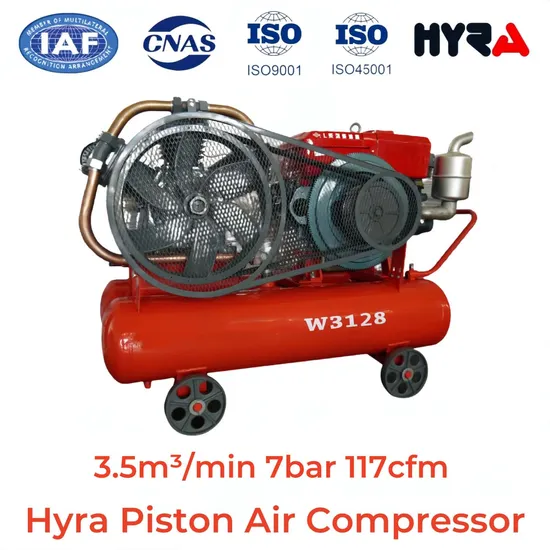

Hacw3128 7bar Portable Mining/Industrial Three Cylinders 910 Gallon Reciprocating Air Compressor 7bar Mine Piston Air Compressor 25HP Piston Air Compressor

Product Description

Product Description
Widely used in mining, water conservancy, geology, construction,building materials, transportation, weaving, machinery, automobilemanufacturing and repair and other industries, especially in the field ofmining to drive pneumatic rock drill, air pick and other pneumatic toolsimprove the effect is obvious
Features:
1.Compact structure, remote start, automatic control, high pressuresufficient air volume, reliable use
2.Two-stage compression, intermediate cooling, oil lubrication.manual and remote control automatic pressure control
3. Hyra's piston air compressor series, with exhaust volume ranging from small to large, meeting the air volume requirements of different models of pneumatic rock drills and other pneumatic machinery. There are various structural forms, suitable for different users.
4.Support OEM/ODM customization to meet different needs of customers.
Product Parameters

Model	HACW3128
Air Delivery (m³/min)	3.5
Outlet Pressure (Mpa)	0.7
WorkingPressure (Bar)	7
Rated Speed (RPM)	990
Diesel Engine	S1125
Piston Displacement	110
Gas tank volume (L)	239
Drive	V-Belt
Dimension LxWxH(mm)	1800×940×1290
Weight (Kg)	450/390

Detailed Photos

Model	HACW1.8/5	HACW2.85/5	HACW3.0/5	HACW3.5/5	HACHV-4.0/5	HACHS-4.5/6	HAC2V-4.0/5	HACW3108	HACW3118	HACW3128
Air Delivery (m³/min)	1.8	2.85	3.0	3.5	4	4.5	4.0	2	3.0	3.5
Outlet Pressure (Mpa)	0.5	0.5	0.5	0.5	0.5	0.6	0.5	0.7	0.7	0.7
WorkingPressure (Bar)	5	5	5	5	5	6	5	7	7	7
Rated Speed (RPM)	1180	1070	1070	1070	970	980	980	1150	1050	990
Diesel Engine	S1100	S1100	S1115	S1125	L32	QC490G/35KW electric motor/23KW	QC490G/35KW electric motor/22KW	S1105	S1115	S1125
Piston Displacement	80	100	100	100	100	112	110	80	100	110
Gas tank volume (L)	130	200	200	200	230	230	230	130	200	239
Drive	V-Belt	V-Belt	V-Belt	V-Belt	V-Belt	V-Belt	V-Belt	V-Belt	V-Belt	V-Belt
Dimension LxWxH(mm)	1630×750×1150	1570×940×1290	1570×940×1290	1750×940×1290	1900x1070x1260	2030X945X1560 1460924X1210	1900x930x1235	1630x750x1150	1750×940×1290	1800×940×1290
Weight (Kg)	299/257	400/340	405/345	410/350	580/540	630/550	580	320/280	435/375	450/390
