Rotary Transfer Multi-Axis Combination Machine

Product Description

product advantages
1.one time finish
2.high efficiency
3.speed is fast
4.quoting ltalian technology
drilling hole boring hole tapping hole



SZ-110HV3-9WF
Italian technology.transfer vertical rotation 8 station 3 direction 9 axis.broing/tapping/milling slot/groove tools transfer G1/2" Filter ball valve processing special machine
This machine adopts schneider PLC programmable controller control.The operation control is flexible and convenient.Can connect intelligent manufacturing control system.Ensure the efficiency of machine tools.The device has a wide operating window.Convenient workpiece entry and fixture replacement.

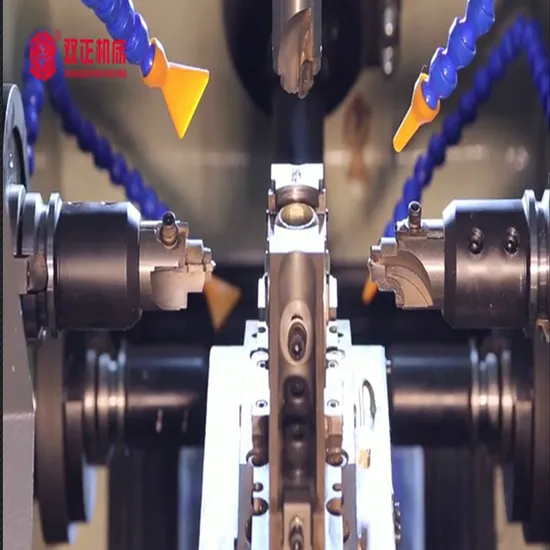

The workpiece is clamped in the machine tool one-time Armor,8 station Vertical rotation of station rotary table.Synchronous clamp turn 7 close 1 open.Each functional power head,Three directions simultaneously complete broing/tapping/milling slot /groove tools process.According to customer product drawing processing standard requirements.To complete the finished product in one time.Lean production.
The bed structure is made of HT300 as a whole.According to the process, three times of aging treatment.Minimize internal stress.Ensure no deformation.All holes for power heads and datumplane.The five-sided CNC machining center is used for one-time processing.Perfect to ensure mounting accuracy.



SZ-110HV3-9WF

processed product	G1/2" Filter ball valve
power (kw)	50.45*50%
weight	8200kg
Equipment size (length *width*height)m	4.5*3.5*3.1
Exection of figures	boring/tapping/milling slot/groove tools
upper and lower feeding system	manual loading/unloading
processing efficiency s/pcs	6 s
chip removal machine	chain plate chip removal machine
processing method	water-cooling processing

Zhejiang shuangzheng machine tool co., LTD was established in August 2015,"Double positive machine tool" is a manufacturing enterprise which makes machine tool equipment for high end intelligent automatic machine processing for water heating and valve industry.The technical quality of the company's products,It focuses on the application technology of machine tool manufacturing in Italy and Taiwan.
company specializes in plumbing valves,Wei yu,refrigeration,Auto parts design and manufacture of high-end intelligent servo multi - axle transfer machine combination processing machine,Valve automatic assembly machine,Fully automatic CNC machine tool,Hydraulic machine tool,Hydraulic machine tool,Automatic machining of pipe fitting joint,The robot intelligent upper and lower feeding system and flexible production line machine and other eight series of more than 100 varieties of production equipment.The company can customize various special machine tools according to the user's demand,Product automation assembly machine assembly line equipment.









our serviece
Before sales
our professional tachnical recommed the right machine and can also customise special machine as customer's requirement and special parts
sales following
during machine production watching the machine quality and testing machine and take pictures or make video for customer checking
After sales
we will send technical go to customer's factory to install and adjust machine
we have after-sell service to supply all life-time machine maintance and repairment service



Q1. How can I get a quotation?
A. Leave us massage with your purchase requirements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.

Q2. Can you provide customized machine or SPM (Special purpose machine)?
A. Yes, we provide smart solutions for our customer, in order to increase efficiency.

Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.

Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.

Q5.What's your warranty terms?
A.One year warranty for normal use and we supply maintenance for free.

Q6.What kind of payment methods do you support?
A. We support payment methods such as L/C, T/T, DP, DA and so on

Q7.Do you have a professional technician?
A. Yes, our company has a team of professional engineers from Taiwan.

Q9.What is the technology adopted by the machines in your factory?
A.Our factory adopts mature Italy sub technology.

Our company specializes in the design and manufacture of high -end precision transfer multi-axis combination.Provide 4.6.8.10.12 station body design.power head.Fixture modular design.Provides a highly flexible combination .Effectively provide customer product solutions.It is widely used in water heating,valve,weiyu,refrigeration and auto parts.

---
