DIN22102 Industrial Conveyor Belt Ep/Nn Conveyor Belting China Supplier

Product Description

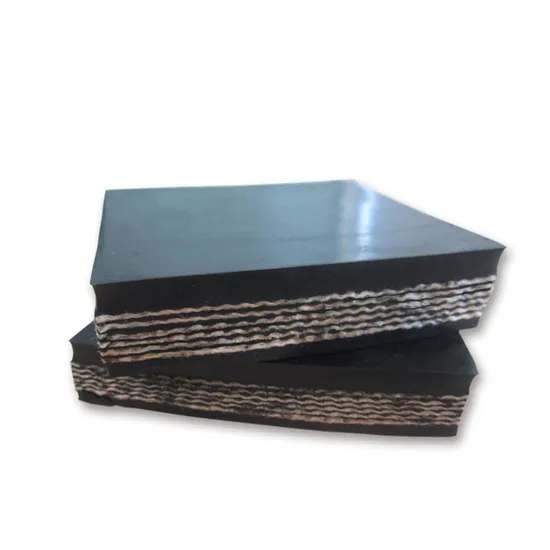

DIN22102 Industrial Conveyor Belt EP/NN Conveyor Belting China Supplier
Product Desription
1. Specification

Fabric Type	Fabric Structure		Fabric Specs	Fabric ply No.	Belt width (mm)	Length (m)	Cover Thickness (mm)
	Warp	Weft					Top	Bottom
Cotton			CC56	2-6	400-2200	5-500	2-12	1.5-6
Polyester (EP)	Polyester (E)	Polyamide (P)	EP100	2-6	400-2200	5-500	2-12	1.5-6
			EP125	2-6	400-2200	5-500	2-12	1.5-6
			EP150	2-6	400-2200	5-500	2-12	1.5-6
			EP200	2-6	400-2200	5-500	2-12	1.5-6
			EP250	2-6	400-2200	5-500	2-12	1.5-6
			EP300	2-6	400-2200	5-500	2-12	1.5-6
			EP400	2-6	400-2200	5-500	2-12	1.5-6
			EP500	2-6	400-2200	5-500	2-12	1.5-6
Nylon (NN)	Nylon-66 (N)	Nylon-66 (N)	NN100	2-6	400-2200	5-500	2-12	1.5-6
			NN125	2-6	400-2200	5-500	2-12	1.5-6
			NN150	2-6	400-2200	5-500	2-12	1.5-6
			NN200	2-6	400-2200	5-500	2-12	1.5-6
			NN250	2-6	400-2200	5-500	2-12	1.5-6
			NN300	2-6	400-2200	5-500	2-12	1.5-6
			NN400	2-6	400-2200	5-500	2-12	1.5-6
			NN500	2-6	400-2200	5-500	2-12	1.5-6

2. Physical Properties of Rubber Cover (before aging)

Grade	Tensile Strength/Mpa ≥	Breaking Elongation/% ≥	Abrasion Loss/mm3 ≤
H	24	450	120
D	18	400	100
L	15	350	200
DIN W	18	400	90
DIN X	25	450	120
DIN Y	20	400	150
DIN K	20	400	200

3. Ply Adhesion

Item	Ply to ply	Rubber cover to ply
		Rubber cover thickness ≤1.5mm	Rubber cover thickness >1.5mm
All samples average value/ (N/mm) ≥	4.5	3.2	3.5
All samples min peak value/ (N/mm) ≥	3.9	2.4	2.9
Note: All samples max peak value is not more than 20N/mm.

Application
EP/nylon conveyor belt is suitable for transporting lump, granular, powdery materials of normal temperature, non-corrosion in general conditions. It is widely used in metallurgy, construction materials, wharf, mining industries.
Why Choose Us
1. Certificate
2. R&D Center and Testing Lab
Packing & Shipping
FAQ
Q1. Are you a manufacturer?
A. Yes, we have been producing and selling conveyor belts since 1982.
Q2. Can you produce belts with my own brand?
A. Yes, we can.
Q3. What about the lead time?
A. 1) 5~7 days for sample (free sample)
2) 15~30 days according to order quantity
Q4. How about payment terms?
A. 1) We prefer T/T, 30% advance paid upon order, rest upon b/l copy, or
2) Sight or deferred L/C, or
3) Other payment terms approved.
Q5. How do you ensure product quality?
A. 1) We have a R&D center of an independent design and developing capacity
2) We an independent testing laboratory with full-property testing capacity of conveyor belt. We can test various materials, rubber, fabric, semi-finished product and finished product.

---
