Product Details
Product Description
Product Description

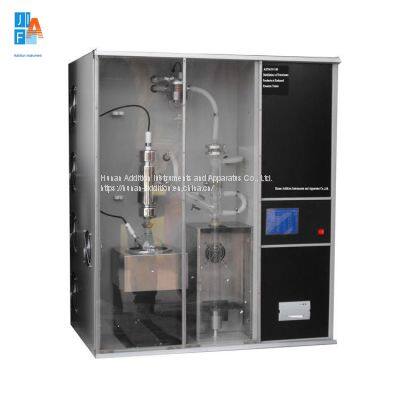

Petroleum Products Decompress Distillation Tester
ASTM D1160
Product Model: JF9168Z
Product Introduction
The instrument is designed and manufactured according to ASTM D1160, GB/T9168 and other test standards. It is a complete set of vacuum distillation system. The components in the tester are reasonably arranged, including distillation column, pressure measurement system, bottle receiving chamber, vacuum pump, Cold wells and refrigeration units, pressure buffer tanks, circulating pumps, etc.
Technical Parameter
1. Applicable standards: ASTM D1160， ISO6616，GB/T9168
2. Thermal bath temperature: normal temperature~80℃±3℃ (set to 60℃)
3. Refrigeration temperature: - 45℃
4. Refrigeration method: compressor refrigeration
5. Pressure range: 130Pa ~ 6.7KPa
6. Pressure stability: ±0.01KPa when lower than 1KPa, 1% when higher than 1KPa
7. Pressure control: adjust the pressure knob
8. Instrument display: all instruments use digital display
9. Power of the whole machine: 3KW
10. Working power supply: AC220,240V/50,60Hz
11. Instrument size: 510*450*630mm
12. Net weight: 46KG
Main Feature
1. High-precision thin-film vacuum differential pressure gauge, instead of mercury differential pressure gauge
2. The digital meter displays the pressure, and the results are clear at a glance
3. High-precision needle valve control pressure
4. Temperature display: digital display thermostat
5. PID temperature control technology makes the temperature more accurate, with an accuracy
of ±0.1℃
6. Pressure range: 760mmHg~0.1m
>>
