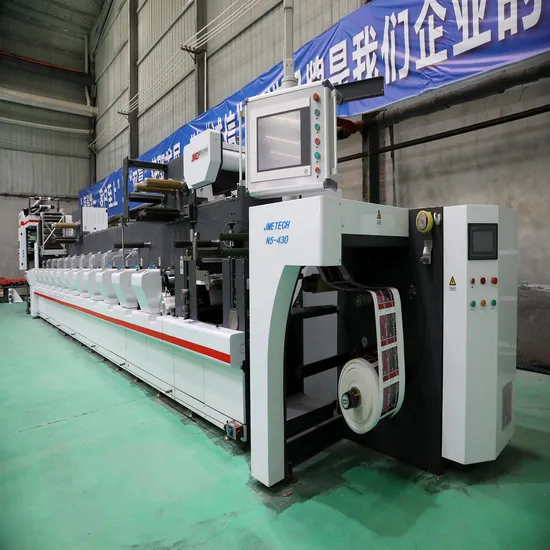

N5 Series Flexo Printing Machine Is The Combination Press

Product Description

N5 Series Flexo Printing machine is the combination press that specially designed by more than 20 years design, research and running experience to meet not only long run, but also medium run and short run and reach highest efficiency and lowest waste. It experienced strictly Grid testing and challenged printing quality and registration limit testing To Flexo. N5 Series Flexo Printing machine is extremely flexibility, it can combined web gravure, silk screen, offset, inkjet, digital printing, cold foil and suitable for all kinds of materials! Meanwhile it can also combine inline coating and PUR glue lamination. • Super short web path, 27"chilling impression cylinder, keep smooth web pass through and constant web temperature. • Advanced fully servo technology, used for unwind, tension control, Printing units, diecutting units, rewind and cold foils. • Shorter Change over time, Lower waste, highest printing quality and highest production efficiency. • Auto pre register, auto register and 2nd pass. • Very accuracy tension control, only several N. • 7colors printing to similar 90% pantone colors, Advanced in this segment. • N5 series Flexo printing machine is your best choice to win your competitors! Substrate range: All kinds of PS labels(Paper, PET, BOPP, PVC), Paper from 30gsm, light corton upto 300gsm, mono film PET from 12um,PVC, BOPP, PE, PA from 15um, Foil from 20um, laminate tube, PBL and ABL.

Substrate Width :			Max 670 mm
Min. Width:			340 mm
Printing Width:			Max 650 mm
Printing Stations:			As request, upto 20colors
Gear Pitch:			Z = 3.175 mm (Helical 1/8")
Print Repeat:			Print Cylinder : From 8" to 24"
Die-Cutting Repeat:			from 96 (12") to 192T (24") - (min. 304,8 mm - max. 609,6 mm)
Machine Speed			180 m/min
Unwinder Reel Diameter:			1000 mm. (39") - max load 375 Kg
Rewinder Reel Diameter:			1000 mm. (39") - max load 500 Kg
Waste matrix rewinder Diam:			700 mm (27.5")
Unwind / Rewind Shaft Diameter:			3" and 6"
Printable Material			Self Adhesive Stock (paper, PET, BOPP, PVC);; Unsupported Film PET from 15µ, others from 20µ; Lamitubes; light cardboard 350 gsm.
Plate Thickness:			1,14 mm
Sticky Back Thickness:			0,38 mm
Electrical Voltage:			Req. Voltage (380V standard) ±5%, 3-phases, Neutral, Ground
Frequency:			Req. Frequency (50Hz standard) ±2%, others are on request
Electrical Equipment:			According to Chinese Regulations, others are on request
Colors			Main Structure light grey + white. or on customer request
Ambient Temperature:			10° to 25°C
Directed Humidity			30% to 80% (at 20°C)
Altitude			max 2000m above sea level
Compressed Air			6 bar pressure non lubricated, dehumidified and filtered air; +2°C dew point , customer prepare this.

has a professional design team engaged in the printing industry for more than 20 years, there is a production team that has created miracles in the industry, the company is now focusing on the research and development, production and sales of flexo printing machines, digital printing machines, special models and OEM various specifications of high-quality digital platforms (including POD, books, flexible packaging, corrugated boxes etc.), the company takes the core technology as the traction, catches up with the international well-known brand in machine performance, and wholeheartedly provides users with high quality, efficiency, stability, Cost-effective equipment and service. The company has good cooperation with Shenzhen Xianjunlong, Fujian Nanwang Group, Ningbo Chengyi, Agfa Group, Beijing Shengde, Shenzhen Runtianzhi etc. and has more than 20 patented technologies, filling a large number of domestic and foreign gaps. The company is headquartered in Xi'an, in Guangzhou, Xi'an, Shanghai has a professional sales team and after-sales service team to provide users with professional and efficient solutions.
Q: Your factory is trading company or factory?
A: We are factory. We have more 5000 square meter workshop and 80 workers ,We accept customized services, research and design.
We are Factory, so we have cost advantage than others
Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.
Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.
Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.

---
