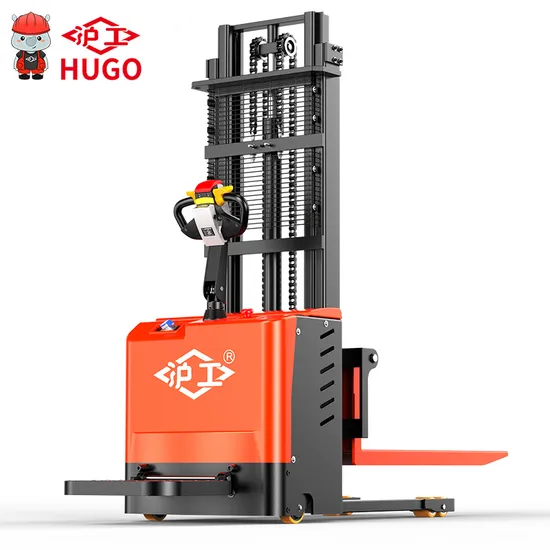

1t 3t 5t Standing Type Heavy Duty Full Electric Pallet Stacker

Product Description

Product Description
Full electric stacker refer to various wheeled trucks for loading and unloading,stacking,stacking and short-distance transportation of palletized goods. The International Organization for Standardization ISO/TC110 is called an industrial vehicle. It has simple structure, flexible control, good micro-movement, and high explosion-proof safety performance. It is suitable for operations in narrow passages and limited spaces. It is an ideal equipment for loading and unloading pallets in high-bay warehouses and workshops.
Product Specification

Motor Move and Motor Stack
1. Strong 2. Smooth Chain 3. Brand Pump 4. Multi-Function Controller
5. Thick C-type Steel 6. Stand Pedal 7. Nylon Wheel
Lift Capacity	1			1.5
Max Lift Height(mm)	1600	2500	3000	1600	2500	3000
Min Lift Height(mm)	90
Overakk Lenght(mm)	2010
Overakk Width(mm)	775
Overakk Height(mm)	2055	1865	2115	2055	1865	2115
Fork Size(mm)	1150*150*60
Min Turning Radius(mm)	1700
Bearing Wheel Size(mm)	74*70*2
Diversion Wheel Size(mm)	180*50
Battery	Full charging time 10hours,continue working time 8hours
N.W.	360	435	450	390	470	500

Company Products Company Profile
Our Service 1. Working hours are 7am-10pm, please understand other times
2. Send us the products you need, we will give you the mostdetailedquotation
3. We give you the best shipping solution
4. The HUGO brand is TOP 1 in China, and our business is all over the world
5. Our aim is to become the best partner with you
6. Please trust us!

Customer praise This machine works very well, the quality is higher than other products, the plate is also very thick, the use time is long, it saves us a lot of production costs, the seller is very sincere, we are about to place the second order.
good product, as request for spec.
my rep was very helpful. I would d drop business again without hesitation Packing or Delivery 1. Full or half packs, packed according to your needs
2. According to the product you need, we will provide you with the most suitable packaging method
3. Our culture is to serve customers well~~~~~

FAQ Q1: How long is the Warranty for HUGO product?
A1: HUGO provides 12 months
Q2: How about the delivery time?
A2: Usually HUGO producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: Can HUGO provide customized products? OEM products or ODM products?
A3: Yes, HUGO can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special reqeust.
Q4: Could we request our own color for the products?
A4: Yes, of course, you just need to offer us the RAL code.
