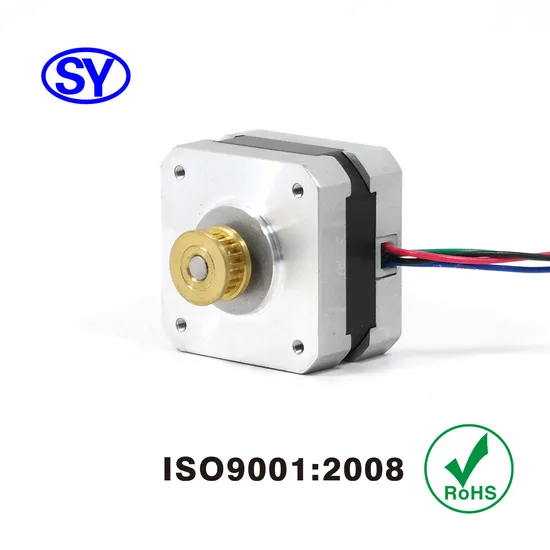

0.3 Nm 42mm NEMA 17 Hybrid Stepper Motor

Product Description

0.3 Nm 42mm Hybrid Stepper Electrical Motor
Features:
High torque
Low noise
Smallsize Product Description:
1. Specification:
Step Angle: 1.8°± 5% full step, no load
Shaft End Length: 141mm (5.55 in)
Shaft: Screw Shaft, Customized Shaft Length
Connectors: Connectors, Lead Wires
Motor Length: 40mm (1.57 in)
Holding Torque: 300mNm (42.48 oz-in)
Rated Current: 1.0 A DC
Ambient Temperature: -24 ºC- +60 ºC
Relative humidity: 90% MAX
Resistance Accuracy: ± 10%
Insulation Resistance: Larger than 100 mΩ 500 V DC
Dielectric Strength: 600 V AC for 1S, leakage current less than 1mA
2. Note: Pricing is decided by the motor's performace and parameters, most importantly decided by your requirment, contact us and get the latest price list.
3.Payment term: T/T in advance, 30% advanced deposit, 70% balance before shipment.
About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and Servo motor. We passed ISO9001:2008 quality system, and all row materials are base on ROHS standards. Our all motors can be customized, welcome to contact us.
Contacts: MS. Rita Law
mobile: (+86) 13631101993 Web: shengyangmotor.en.made-in-china.com

Series & Length	Model Number	Holding Torque	Rated Current	Resistance per Phase	Inductance per Phase
		mNm oz-in	A	ohm	Mh
42BYGH0 26mm (1.02 in.)	42BYGH001	120 17	0.3	42	48
	42BYGH007	160 22.66	0.4	10.4	14
42BYGH1 33mm (1.30 in.)	42BYGH104	275 38.94	0.4	40	35
	42BYGH107	250 35.40	0.4	22	30
42BYGH2 34mm (1.34 in.)	42BYGH202	220 31.15	0.5	30	37
42BYGH3 40mm (1.57in)	42BYGH312	530 75.05	0.6	26	48
42BYGH4 40mm (1.57 in.)	42BYGH412	420 59.47	1	6.7	9.8
	42BYGH413	300 42.48	1	3.5	5
42BYGH11 34mm (1.34 in.)	42BYGH1101	240 33.98	0.4	30	45
	42BYGH1102	280 39.65	0.84	5.75	9.3

Our factory's
More details or any inquiry, welcome to contact us!

---
