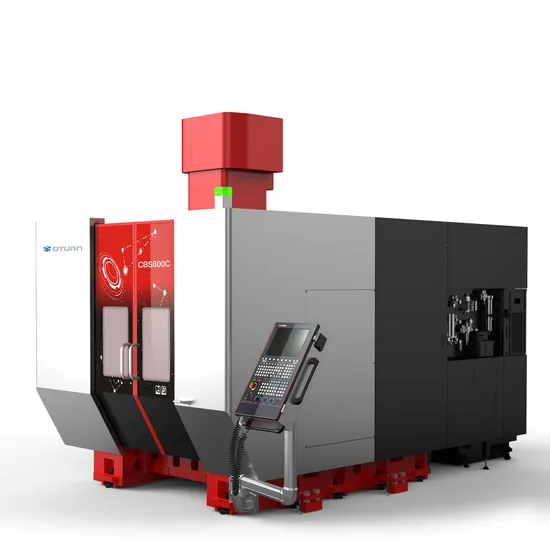

High Performance Five-Axis CNC Vertical Machining Center CBS800c

Product Description

Product Description
The CBS800C high-speed high-performance precision bridge type five-axis machining center developed has the characteristics of high rigidity, high precision and high efficiency machining. CBS series machines adopt bridge structure layout, XYZ axis movement is not affected by AC axis, can maintain high-precision machining for a long time; X/Y/Z/A/C axis full closed-loop control to ensure high-precision machining; The whole machine adopts finite element analysis to design each component to provide the best overall stability performance.
Three-axis rapid displacement of 48 M/min, T-T tool change time is only 4S, the tool magazine is fully loaded for 24 hours without alarm running machine and each machine test machined sample 3-dimensional detection through, to ensure the efficient continuous stability of the machine after leaving the factory. It is suitable for the two- and three-dimensional bump models with complex shapes that require 5-axis linkage for one machining, and is more suitable for both small and medium-sized batch multi-variety processing and production, and can also enter the automatic line for mass production.
Adopting the latest C80 plus system, 15-inch large LCD screen, tool path dynamic graphic display, intelligent alarm display, self-diagnosis and other functions make the use and maintenance of the machine tool more convenient and faster; the high-speed bus communication method greatly improves the data of the CNC system Processing power and control performance, the program storage capacity is increased to 4G, and the pre-reading capability is increased to 3000 lines/second, making it easy to read data quickly and accurately. Efficient transfer and online processing of large-volume programs
Product Parameters

Item		CBS800C
Travel	X/Y/Z axis travel	800*910*560
	Spindle nose to table center	100-660
Spindle	Spindle taper	A63
	Max.spindle speed	20000
	Spindle power(continuous /S3 25%)	30/34
	spindle torque (continuous /S3 25%)	47.7/57.3
Feed rate	Rapid speed of (X/Y/Z)m/min	48/48/48
	mm/min Cutting feed	1-24000
Rotary table	Rotary table diameter	800*560MM
	Allowable load weight	400kg
	A axis tilting angle	±110
	C-axis rotation	360°
	A-axis rated/max speed	40/80
	A-axis rated/max cutting torque	3500/7000
	C-axis rated/max speed	450/800
	C-axis rated/max cutting torque	450/900
	A positioning precision / repeat positioning precision	10/6
	C positioning precision / repeat positioning precision	8/4
ATC	Number of tool	30
	Max. tool diameter / length	80/300
	Max. tool weight	8
	Tool change time (tool to tool)	4
Three axis	X-axis guide (line rail width / number of sliders)	45/2
	Y-axis guide (line rail width / number of sliders)	45/2
	Z-axis guide (line rail width / number of sliders)	35/2
	X-axis linear motor thrust (continuous/max)	3250/8250
	Y-axis linear motor thrust (continuous/max)	3250/8250
	Z-axis linear motor thrust (continuous/max)	2R40*201 (screw)
Accuracy	Positioning precision	0.005/300
	Repeating positioning precision	0.003/300
Power	Power supply capacity	70
	Air pressure	≥0.6Mpa ≥400L/min
Machine size	Machine size (LxWxH)	2800*5081*3500
	Complete machine size(LxWxH)	2800*7205*3500
	weight	15.5T

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.

---
