US$10,000.00-28,000.00
|
1 set
(MOQ)
|
Basic Info.
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Table Travel (X/Y/Z)
1100X320X450mm
Main Motor Power
5.5kw(H) 4kw(V)
Distance Between Spindle Nose and Table
196-656mm
Distance Between Horizontal Nose and Tab
20-480mm
Distance Between Spindle Axis and Arm Su
200mm
T-Slots(No./Width/Pitch)
3/18/80mm
3-P Feed AC Servo Motor Torque
10 N.M
Transport Package
Wooden Case
Specification
2245x2100x2000mm
Trademark
Dalian ZT Machinery
Production Capacity
300 Sets/Month
Product Description

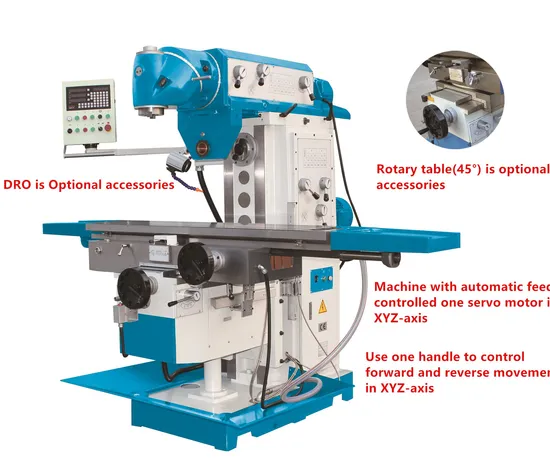

Features: * The milling machine with automatic feed controlled one servo motor in X,Y,Z-axis;
* One handle is used to control forward/backward movement in X,Y,Z-axis
| Specifications | Unit | XL6436 | XL6436C | XL6436CL |
| Table size | mm | 1325×360 | 1600×360 |
| Table travel (X/Y/Z) | mm | 750/320/460 | 1100/320/450 | 1300/320/450 |
| Table feed(X/Y/Z) | mm/min | 30~750/20~500/15~375 |
| Spindle taper | | 7:24 IS050 (H) 7:24 IS050 (V) |
| Arm travel | mm | 550 |
| Distance between spindle nose and table surface | mm |
196-656
| 196-646 |
| Distance between horizontal nose and table surface | mm | 20-480 | 20-470 |
| Distance between spindle axis and arm surface | mm | 200 |
| Spindle speed range | r.p.m | 12 steps 60-1750 (V) 12 steps 60-1800 (H) |
| T-slots(NO./width/pitch) | mm | 3/18/80 |
| Main motor power | Kw | 5.5 (H) 4 (V) |
| 3-P feed Ac servo motor torque | N.m | 10 |
| Overall size | mm | 1800×2100×2000 | 2245×2100×2000 | 2520×2100×2000 |
| Net weight | kg | 2685 | 2750 | 2800 |
Standard accessories:
| Name | Model no. | QTY |
| 7:24 middle cover | 7:24 ISO50/MS4 | 1 |
| Horizontal arbor assembly | Ф27 | 1 |
| Horizontal arbor assembly | Ф32 | 1 |
| Drawbar | M24 | 2 |
| Double-ended wrench | S22-24 | 1 |
| Double-ended wrench | S17-19 | 1 |
| Double-ended wrench | S36-41 | 1 |
| Inner hexagonal wrench | 5 | 1 |
| Inner hexagonal wrench | 10 | 1 |
| Inner hexagonal wrench | 14 | 1 |
| sleeve | M24 | 1 |
| Washer | M24 | 1 |
| Taper shank sets milling cutter arbor | 7:24 ISO50-Ф32 | 1 |
| Work lamp | incandescent lamp | 1 |
| Coolant system | | 1 |
| Manual lubrication | | |
| Chip tray | | 1 |
PACKING, FIXING AND SHIPMENT
CUSTOMERS VISITING & EXHIBITION
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.
>>
