3/4′′ Y Type Disc Filter Irrigation Disc Water Filter

Product Description

Product Description

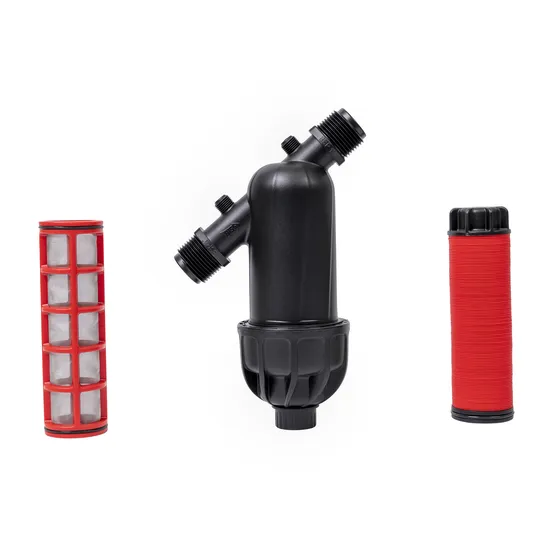

Y Type Disc Filter
PRODUCT DESCRIPTION

Type:	Other Watering & Irrigation	Place of Origin:	Fujian, China
Brand Name:	ARKA	Model Number:	F32YD-N
Material:	Plastic	Carton Size:	51*36*47mm
Product name:	1'' Disc filter	Usage:	Agriculture irrigation
Function:	filtration water treatment	Filter Type:	Disc Filter

Model	Connection	Max Flow (m³/h)	Pressure Bar	Filtering Surface (cm2)
F25YD-N	1''	6	8	195

SUPPLY ABILITY: 30000 pieces per month
PACKING&DELIVERY

Packaging Details:	Cartons
Port:	Fuzhou

FEATURE & ADVANTAGE
1.Manufactured in polypropylene
2.Resistance to hemical products, wear-resistant
3.Clamp design can be easily removed filter cleaning
4.Micron filtration precision, can easily filter impurities in water
5.Different interface sizes and traffic can meet different scenarios and customer requirements.
THE UNIQUE DISC TECHNOLOGY

1. ARKA adopt colorful & thin polypropylene discs of micron precise level. The discs are diagonally grooved on both sides in opposite directions.
2. A series of discs are stacked and compressed on a specially designed filter spine.
3. The grooves of any two adjacent discs with opposite direction pressed together,then it will create a series of crossing points which form multiple particle traps.
4. Filtration occurs as water percolates from micron rating,there are multiple crossing points in each track, creating distinctive in-depth filtration.
OUR SERVICE
1. OEM/ODM services are accepted.
2. Technical support and design personalized solutions by the engineer team.
3. Accept sample order.
4.Quality tracking & service.
5.Provide the free catalog for you.
6.Various irrigation products for your choice.
7.Warranty: 1 year warranty from the shipping date.
COMPANY PROFILE
* Founded in 2008, located in Fuzhou, china
* A Professinal Environmental equipment manufacturer.
*Strong capacity in supplying chain managerment, integrated production and manufacturing.
*Unique innovation in the development and design of water recycling system control integration.
*We have passed the ISO9001 quality system certificate and CE certificate.
*The world's leading water saving technology & High cost performance
