380V 1ton Single/Dual Speed Electric Chain Hoist with Trolley Lifting

US$300.00-1,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

SSDHL01-01S

Application

Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane

Type

Electric Hoist

Sling Type

Chain

Lift Speed

2~8m/min

Maximum Lifting Height

>20m

Chain Falls

Certification

CE, ISO9001:2000

Condition

New

Color

Orange

Motor Insulation

Class F

Running Model

Moving

Structure

Hook Crane

Installation

All-Terrain Crane

Type of Work

Middle-Level

Power Supply

3p 220V-690V

Control Voltage

24V/36V/48V

Rotation Speed

1440r/Min

Working Temperature

-20 ºC to 45 ºC

Working Humidity

85%Rh or Less

Suspension Types

Hook,Manual Trolley,Electric Trolley

Protection

IP54 for Hoist Boday, IP54 for Push Button Control

Rated Capacity

250kgs to 50 T for Single Speed & Dual Speed

Delivery Day

7-30 Days

Transport Package

Wood Carton

Specification

0.5 ton-50 ton

Trademark

WOKAITE

Origin

Zhejiang China

HS Code

8425110000

Production Capacity

1000sets/Month

Packaging & Delivery

Package Size

70.00cm * 44.00cm * 59.00cm

Package Gross Weight

115.000kg

Product Description

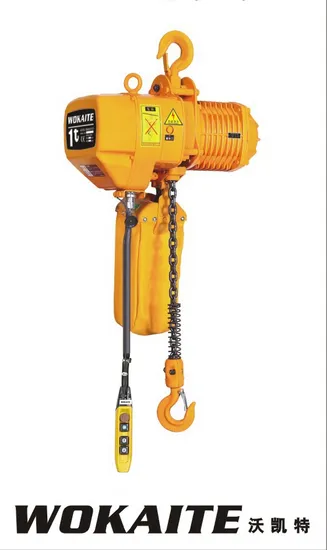

WOKAITE Electric Chain hoist is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the Most important parts of the Machine is Chain and brake system. WOKAITE 1 ton electric chain hoist for sale Feature: 1.Forged hook is strong enough,and can rotate 360 degree.
2.Safety factor of high strength alloy carburizing chain up to 9times.
3.Aviation plug makes electric trolley with the hoist connection more wonderful.
4.Wireless remote control can be assembled.
Power voltage: 220V-690V,dual voltage are available.50Hz are optional.
Control voltage: 24V,36V,48V are optional.

Model	Single Speed
	0.5-01S	01-01S	1.5-01S	02-01S	02-02S	2.5-01S	03-01S	03-02S	03-03S	05-02S
Capacity(t)	0.5t	1t	1.5t	2.1		2.5t	3t			5t
Lifting speed(m/min)	7.2	6.6	8.8	6.6	3.3	5.4	5.4	4.4	2.2	2.7
Motor power(Kw)	0.8	1.5	3	3	1.5	3	3	3	1.5	3
Rotation speed(r/min)	1440
Insulation grade	F
Power supply	3P 220V~690V
Control voltage	24V/36V/48V
NO.of chain	1	1	1	1	2	1	1	2	3	2
Spec.of load chain	Φ6.3	Φ7.1	Φ10.0	Φ10.0	Φ7.1	Φ11.2	Φ11.2	Φ10.0	Φ7.1	Φ11.2
Net weight(Kg)	47	61	108	115	73	115	122	131	85	151

Model	Double speed
	0.5-01D	01-01D	1.5-01D	02-01D	02-02D	2.5-01D	03-01D	03-02D	03-03D	05-02D
Capacity(t)	0.5t	1t	1.5t	2t		2.5t	3t			5t
Lifting speed (m/min)	7.2/2.4	6.9/2.3	9.0/3.0	6.9/2.3	3.3/1.1	5.4/1.8	5.4/1.8	4.5/1.5	2.4/0.8	2.7/0.9
Motor power (Kw)	0.8/0.27	1.8/0.6	3.0/1.0	3.0/1.0	1.8/0.6	3.0/1.0	3.0/1.0	3.0/1.0	1.8/0.6	3.0/1.0
Rotation speed (r/min)	2880 / 960
Insulation grade	F grade
Power supply	3 phase, 200V-690V, 50/60Hz
Control voltage	24V/36V / 48V
No,of chain	1	1	1	1	2	1	1	2	3	2
Spec.of load chain	Φ6.3	Φ7.1	Φ10.0	Φ10.0	Φ7.1	Φ11.2	Φ11.2	Φ10.0	Φ7.1	Φ11.2
Net weight (kg)	54	74	144	150	86	148	159	168	102	184
