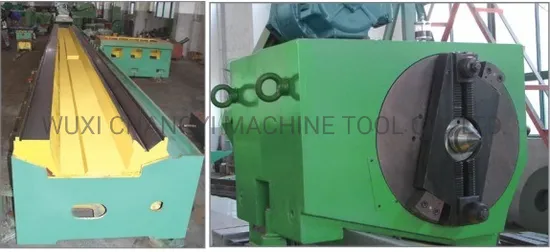

MW1380 cylindrical grinder is suitable for grinding the outer circular surface of cylindrical or conical rotary work pieces. It is used in the situation of single piece and small batch production. The longitudinal movement of the machine tool worktable can be driven either by hydraulic stepless transmission or by manual transmission. The lateral feed of the grinding wheel frame can be fed automatically by hydraulic pressure and fast forward and backward, and both thick and thin feed can be realized by hand wheel. The sand wheel frame and the guide rail of the worktable are lubricated by static pressure. The work piece, grinding wheel, hydraulic pump and cooling pump are respectively driven by independent motors. The moving parts of the machine tool have electrical, hydraulic and mechanical interlocking mechanisms, and the operation is safe and reliable.
| Name | specification |
| Grinding outer diameter | Φ30-800mm |
| Center height | 410mm |
| Guide rail center distance | 400mm |
| Max. Work piece weight | 5000kg |
| Max. Grinding length | 5000mm |
| Grinding wheel size(O.D. X W X I.D.) | Φ900x75xφ305mm |
| Grinding wheel spindle speed | 870rpm |
| Max. Worktable traverse | 5270mm |
| Max. Worktable travel speed | 3m/min |
| Grinding wheel linear speed | 35m/sec. |
| Grinding wheel head rapid approach and withdrawal traverse | 100mm |
| Automatic intermittent infeed (fine/coarse) | 0.02/0.0025mm |
| Manual microfeed (fine/coarse) | 0.02/0.0025mm |
| Hydraulic pump displacement | 32ml/r |
| Hydraulic pump pressure | 1.6Mpa |
| Coolant flow | 50L/min |
| Motor total power | 30kw |
| Head of AC frequency conversion motor | 7.5kw/11kw |
| Tail stock sleeve movement | 70mm |
| Top | Metric 100 |
| Grinding wheel motor | 30kw |
| Overall dimensions (L X W X H) | 14400x3830x2280mm |
| Main accessories | |
| Open-type steady rest | 1 set |
| Grinding wheel flange | 1 set |
| Levelling wedge | 12 sets |
| Measuring bridge-board | 1 piece |
| Electric cabinet | 1 set |
| Lubricant tank | 1 set |
| Center | 2 pieces |
| Nut | 2 pieces |
| Grinding wheel dresser | 1set |
| Grinding wheel balancing mandrel | 1 set |
| Extra Accessories | |
| Paper-tape filter | 1 set |
| Center grinding unit | 1 set |
| Grinding wheel balancing stand | 1 set |
| Single-axis digital display and magnetic bar | 1 set |
| Magnetic separater | 1 set |
| Carbide-tipped center | 1 set |
| Working accuracy (Criterion Tyr the piece) | |
| Roundness | ≤5um |
| Uniformity of dia. In longitudinal section | ≤8um |
| Surface roughness | Ra0.32um |
