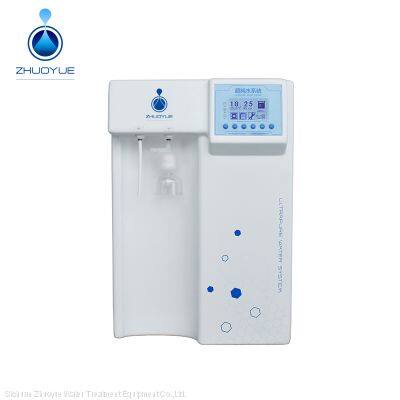

ZYM Deionized Water Treatment Plant For Lab
The model ZYM series produce the triple distilled water plant for lab with resisivity 18.25 MΩ.cm , which is triple distilled water 100% pure H2O without any minerals .
Model list
Model
| Configurati on grade
| l
| ll
| lll
| lV
|
Benchtop (L/H)
| ZYM-l-10/20L
| ZYM-ll-10/20L
| ZYM-lll-10/20L
| ZYM-lV-10/20L
|
Floor style (L/H)
| ZYM-l-20/40/60/100L
| ZYM-ll20/40/60/100L
| ZYM-lll-20/40/60/100L
| ZYM-lV-20/40/60/100L
|
Inlet water source
| Total dissolved solids content TDS<200ppm,water pressure1.0-5.0kg/cm2 , water 25℃
|
Capacity
| 10/20/40/60/100L/H
|
Fiow rate
| 1.5-2.0 L/M( full pure water in tank)
|
RO quality( μS/cm )
| Conductivity :2-10μS/cm(online)Removal rate of pollutants is more than 98%, oxidizable [calculated by 0]: s0.4 mg/L,Evaporation residue≤2.0 mg/L
|
UP quality（MΩ.cm）
| Resistivity 18.25MΩ.cm (online )
Microparticles (20.1um)
Heavy metal ions
Soluble silicon (calculated as Si02)
Absorbance (254nm, 1cm optical path: s0.001
Oxidizable [calculated as 0] ]: s0.08 mg/L
Cation contents0.1ppb: (iron (Fe3+)<0.005ppb,Copper (Cu2+) <0.005ppb, potassum (K+) <0.02ppb,
Aluminum (AI3+)<0.005ppb, Zinc (Zn2+) <0.02ppb,Chromium (Cr2+) <0.005ppb, Sodium (Na+) <0.01ppb);
Anion contents0.1ppb: (chlorine (CI-)<0.01pp,itrite (NO2-) <0.02ppb, Nitrate (NO3-) <0.02ppb Sulfate(S042) <0.01ppb);
|
Bacteria
| <1cfu/ml
| <1cfu/ml
| <0.1cfu/ml
| <0.1cfu/ml
|
T0C Level
| TOC<10ppb
| TOC<10ppb
| TOC<5ppb
| TOC<5ppb
|
Pyrogen (endotoxin)
| ---------------
| ---------------
| ---------------
| ≤0.001EU/ml
|
Configuration
| Dual display
| MF (Terminal filter)
| MF+UV
| MF+UV+UF
|
Product size(mm)
| 530*380*550(Bentop)
| 550*420*1120(Floor style)
|
Pretreatment
| 16'pretreatment (Bentop)
| 20'pretreatment (Floor style)
|
Product weight(kg)
| 35-40kg(Bentop)
| 70-80kg(Floor style)
|
Power(W)
| 30W-50W(Bentop)
| 50W-100W(Floor style)
|
Application
| 1. Preparation of chemical solutions, biochemical reagents and biochemical analysis: 2. Buffer routine physical and chemical testing:
3. Bacteria culture medium:
4. Routine quantitative analysis such as physical and chemical testing:
5. Atomic absorption(AA)
6. Atomic Emission (AES);
7. High performance liquid chromatography (HPLC);
8. lon chromatography (IC);
9. Mass Spectrometry (MC):
10. Plasma emission (ICP);
11. Protein/helium-based acid analysis:
12 Animal and plant cell culture:
13.Instruments with high requirements for heat source analysis.
|
Water storage tank
| A.10L/20L (Benchtop) comes standard with a 3.2G pressure water tank; B.20L/40L/6OL(Floor style) comes standard with 6G/11G pressure water tank; C, 100L (Floor style) standard 20G pressure water tank; Note: The size of the water tank can be selected according to the user's situation.
|
Product features
1.Ultra-pure water circulation to extend the life span of consumable parts within ultra-pure water purification system.
2.Automatic RO membrane anti-fouling flushing and manual forced flushing procedures to extend the life span of RO membrane.
3.Comprehensive system maintenance and safety alarm:
4. Equipped with USB Host interface to support historical alarm records and water taking record data export function, to
facilitate the later access to historical operation conditions data.
5.Adopt more advanced, user-friendly membrane push button to take water.
6.Semi-transparent medical grade PP material do not produce secondary pollution.
7.Humanization design of manual/automatic water taking mode,Timing(1-99min),customization water taking (0.1-18.25MΩ.cm)
The process flow
The technology process is divided into source water pretreatment system,reverse osmosis system and ultra-pure system.5 stage purifying system as below , purification methods and parameters to avail the purity and classify the impurities to beremoved from the original water (tap water or natural one) from what one wants to generates the purified water.1. Source water pretreatment system: PP fiber filter + AC filter + Softener 2. Reverse osmosis system: It has high removal rate more than 99% for high valent ions, colloids, bacteria and organic matter(including endotoxin) with molecular weight greater than 300Dalton.3. Ultra pure system: Ion exchange resin using H + exchange cation out the water in the filter ,using OH- exchange anions out the water , the replaced H + and OH- combined to produce H2O, ultra-purified column filling the United States Dow UPW-450 Ultra-purewater for nuclear grade resin, the water resistance of up to 18.25 MΩ.cm.
Product exhibition
Recommended by seller
0.5M3/H Double Stage RO System Pharmaceutical Water Treatment Plant or System SS304/316 GMPRO$12,380.00 / set1 set
Lab RO Water Purification Treatment Plant System Price$1,898.00 - $2,063.00 / piece1.0 piece
Colorful Touch Screen Ultra Pure Water System/Water Purification System ZYP$1,600.00 - $2,200.00 / set1.0 set
3ppb Intelligent Touch Screen Laboratory Ultrapure DI Water Treatment System for Lab$2,698.00 / set1 set
Compang information
Sichuan Zhuoyue Water Treatment Equipment Co., Ltd.
Sichuan Zhuoyue Water Treatment Equipment Co., Ltd is a integrated water treatment manufacturer with scientific research design, production, sales, installation, after-sales services in Chengdu city, Sichuan province, China, specializing in the production of lab water machine, medical water machine, pure/ultra-pure water equipment, water softener and other related water treatment equipment over 15 years.
Product packaging
Why Choose Us
Why choose us :1. Professional manufacturer : More than 10 years experience in prodcuing pure water treatment system .
2. Strict time control : Ensure delivery time.
3. Factory strength: The factory area is more than 2000m3, more than 100 workers.
4. After-sales service : 24 Hours online for service.
5. Customized is available. Sample order is available.
>>
