Hydraulic Rubber Vulcanizer for Rubber Product Making

Product Description

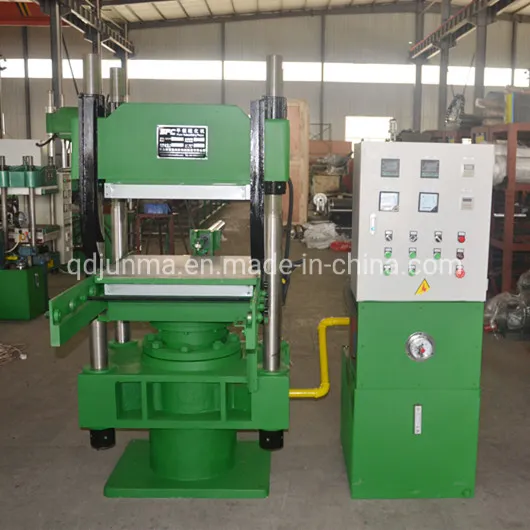

Hydraulic Rubber Vulcanizer for Rubber Product Making
Usage:This machine applies to sulfurizing various kinds of rubber and plastic model products as well as non-model products.
Features:
The machine is pillar structure with upward pressure type. Under the working hydraulic pressure, the piston ascends to make hot plate close for getting pressure, while the piston descends( namely plate turning on) by deadweight of hot plate, platform and piston to drive working fluid to fuel reserve tank to achieve the aim of descending( namely turning on).
Made of nodular cast iron, the oil cylinder of machine is improved in compressive strength and wear resistance. Seal ring made of oil-proof rubber is placed in ou cylinder to have sealing effect in working process of this machine.
Combined oil pump, power source of the machine, provides working fluid with certain pressure. Working fluid enters into oil cylinder by control valve to make control handle on control valve turn to different places, and then embolism is able to ascend or descend.
Adopting tubular electric-heating component to heat uo, the machine can reduce air pollution to keep workshop clean without bolier.
The machine is beautiful in shape, convenient in control, safe as well.
Notes:
We can design and manufacture all kinds of non-standard rubber machininery according to the requirement of the custonmers.

Model	Total Pressure	Daylight (mm)	Working Layer	Piston Stroke(mm)	Main Motor Power(KW)	Overall Diameter (LxWxH)(mm)
XLB-350x350x2	0.25	125	2	250	2.2	1200x580x1200
XLB-400x400x2	0.50	125	2	250	2.2	1400x500x1400
XLB-600x600x2	1.00	125	2	250	2.2	1880x820x1680
XLB-750x850x4	1.60	125	4	500	3	1730x930x2460
XLB-900x900x2	2.5	200	2	400	4	2345x960x1385
XLB-1200x1200x1	3.15	300	1	300	4	2800x1300x2300
XLB-1300x2000x1	5.60	400	1	400	8	2000x1860x2500
XLB-1500x1500x1	8.00	800	1	800	16.5	2200x2200x4300
XLB-1500x2500x1	15.00	400	1	400	11	3000x2500x3300
XLB-2000x2000x1	20.00	400	1	400	11	3600x3000x3300

Packaging:

Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, plywood packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in plywood case or container.
FAQ:

1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.

2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.

4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.

If you come to our factory, we can show the user around us.

5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport.

Our Services:

♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.

♦ In the process of production, we will take photos and send to customers for their track the progress.

♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.

♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.

♦ We supply overseas engineer service and help to train your workers to operate the machine.
Welcome your inquiry!

---
