Automatic High Speed Compound Polyethylene 4-Layer Air Bubble Film Making Machine

Product Description

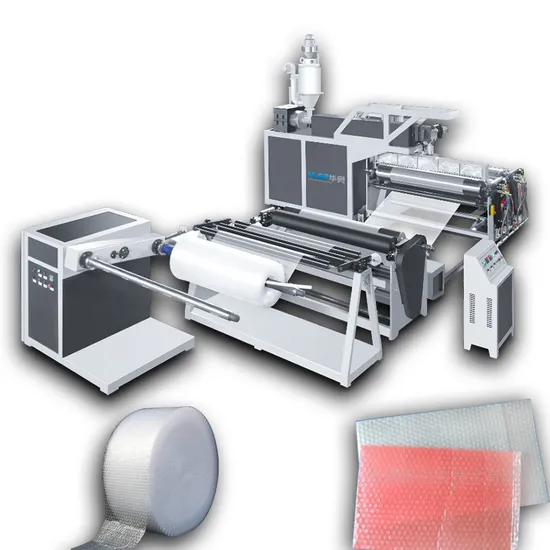

HLFPE-2000 Bubble Film Making Machine
PRODUCT SPECIFICANTIO

Model	HLFPE-1600	HLFPE-2000	HLFPE-2500	HLFPE-3000
Product Width	1600mm	2000mm	2500mm	3000mm
Screw dia	70/60/60	80/70/70	80/70/70	90/80/80
L/D	34:1	34:1	34:1	34:1
Output	150Kg	180Kg	180Kg	300Kg
Motor	22/15/15KW	30/22/22KW	30/22/22KW	45/37/37KW
Total power/Heating power	155/95KW	200/120KW	200/120KW	255/165KW
L*W*H	12000x4800x3200	12000x5100x3200	12000x5300x3200	12000x5500x3200
Line speed	35m/min
Volt/Ph/Line/Hz	380/3/4/50
Material	LDPE/LLDPE

PRODUCT HIGHLIANGTS
Hydraulic change:
-Quickly switch filters in 2 seconds,non-stopping the machine
HuangYan Internally heated T-die:
Energy savings of up to 30% compared to traditional T-die
T-die material:
-Germany 2311steel /P20H
-It is 150% harder than 45# steel
Motor Brand:Brook Crompton(England):
Energy consumption Level 2
-the average efficiency is 94.2%
-substantial reduction of electricity costs
Three screw L/D 34:1:
-Large screw L/D increase extrusion production by 20-40%.
-can use 100% recycled material
PLC Brand:SIEMENS
-Advanced anti-interference technology /high reliability
Contactor Brand:SIEMENS
-Advanced protection and control circuits
Inverter Brand:KEWO
-The whole machine adopts AD1000
-High performance, high efficiency and low noise.
Customizable bubble roll:
-bubble size, depth, shape and gaps between bubbles
Optional 320/420mm bubble rollers available:
-The larger the size of the bubble roll, the average cooling effect increases by 50%.
Worm Gear Transmission Method -High precision, high reliability, long service life
-Smooth transmission and low noise

Final Product Usage
4 layers of bubble film is the center of the two layers of film sandwiched between a layer of bubbles, in addition to the film and then composite single materials: aluminum film,drown paper, co-extruded film, pearl cotton, etc.
-Aluminum film/pearl cotton:
generally used for automobile sun-shield heat insulation/roof insulation
-kraft paper/co-extruded film:
generally very suitable for the outer packaging of products, more convenient for the storage of goods packaging and logistics transportation.
Exhibiton
Why Chosen Us
Long History and Experience:
32 years of machine manufacturing, all kinds of possible models, world wide market basements. Which allows us to be always ahead of infos, we can answer most of your questions, demands, and satisfy your requests. Knowledge comes by time. Hualiang's knowledge is a legacy of three generation. Most professional manufacturing:
Choose machine standard from Economic to Super Speed models. Make all by self from Machine rack to T-Die and Chill Rollers. Select Electrical parts from Chinese to imported brands. We believe quality first but clients must be satisfied, and based on this we slow grown up with our"Hualiang" way of machine making. Most important parts we make by ourself to ensure delivery time and quality, and we have most contracted suppliers for other parts to ensure aftersale services. We do maximum effort to make sure clients' invest do not be wasted. Best & Most Completed Team:
From Designing, buying, quality control, manufacturing, to sales, after sale service, installation, training and market feed back info collection, we all require fast responds withn 24 hours! We provide service of every step of your machine buying from before to after. Each step with our professional tean to give best services. We truly solve your problem, full fill your demands, make sure your business runs with a proper cooperator.
Certicifate
FQAQ:Where is your factory Located?
A: Our Factory Located in Ruian City ,Zhejiang Province ,China. From wenzhou airport to factory around 40min, from ruian station to factory around 25mins.
Q:What machines range we make & supply?
A: Our factory specialized in making plastic machines, stretch film machine, air bubble film machine, complete bags production line, etc; OEM, ODM, with support of strong R&D team, we also help customer get best solutions for special equipments and plastic machinery;
Q: ARE YOU FACTORY OR TRADING COMPANY?
A:We are factory with more than 30 years' experience of manufacturing, we have our own workshop and manufacturing line to show clients how our machines are made.
Q:How can we get satisfied machine in hand?
A: We will test machine in our factory once machine in ready, to check every parts working condition well and ; will record relative photo and video for installation .
Q:What should we charge if we need engineer service in our country?
A: You should bear the cost of our engineer's visa, round-way tickets, hotel, food, and also their salary (120usd/day)
Q: How long is your machine's warranty period?
A: All our machine have 1 year guarantee, starting from finished installation. we still keep service for whole life.
Q: HOW LONG IS DELIVERY TIME?
A: According to machine size and technology, 30-120 days. Every client will have his sales to help calculate exact delivery date and mark in Contact.
Q: PAYMENT METHOD?
A: 30% T/T as deposit and we start making. After finishing machine we will invite buyer to con factory for machine trial. (Including machine move adjustment, film passing through, function showing and for big models we will add material for testing .)After trial passed. 70% before shipment. Also we accept L/C as tight.
Q: DO YOU HAVE ANY CERTIFICATE?
A: CE certificate and ISO 9001 Certificate.

---
