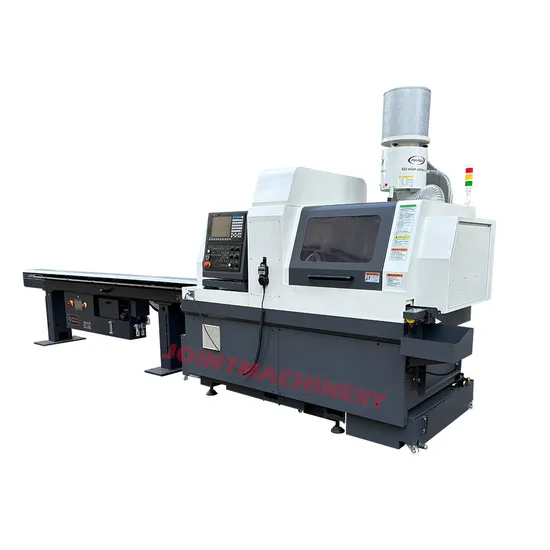

Slm265m-1 5 Axis Horizontal Swiss Type CNC Lathe for Metal Turning and Milling

Product Description

√ Each axis uses imported high-precision linear guide,ball screws and precision bearings.
√ Use synchronous guide bush structure,realize high-speed and high-precision machining.
√ With guide bush and non guide bush mode,flexible switching to meet the needs of different processing technology.
√ Key components with gas sealing structure, oil and slag prevention, improving service life and stability.
√ Select high torque motor, high rigidity and strength each axis slide and tool installation seat to meet the requirements of large cutting volume and high processing efficiency.
√ High scalability, with different tool quantities matched according to the process, resulting in high cost-effectiveness.
√ Multiple ER20 tools can be installed to increase the machine range.
This sophisticated series of machines is designed for precision processing, capable of performing composite tasks like turning, milling, drilling, boring, tapping, and engraving simultaneously. Ideal for batch processing of precision hardware and uniquely shaped non-standard shaft parts.
SLM265M-1 5 Axis Horizontal Swiss Type CNC Lathe for Metal Turning and Milling

Model		Unit	SLM265M-1
			5 axis, dual spindle
NC system			SYNTEC 220TB
Lathe rated power		kw	16
Machining Range
Max machining diameter		mm	Φ26
Max machining length (one-time clamping) With guide bush		mm	310
Max machining length (one-time clamping) Non guide bush		mm	2D
Main spindle power		kw	4.4
Sub spindle power		kw	3
Main spindle max through hole dia		mm	Φ28
Main/Sub spindle rev speed		rpm	6000/6000
Sub spindle max clamping dia		mm	Φ26
Sub spindle max through hole dia		mm	Φ28
Max tool installed qty		pcs	19
OD Turning Tool
Qty*Model		mm	6*16
Cross Live Tool
Cross live tool		mm	3*ER16 +1*ER20
Drilling dia		mm	Φ13
Tapping/Threading die dia		mm	M8
Live tool rev speed		rpm	5500
Live tool power		kw	1
End-Face Tool (Main Spindle)
Fixed	Qty*Model	mm	5*ER20
	Drilling dia	mm	Φ13
	Tapping/Threading die dia	mm	M10
Live	Qty*Model	mm
	Drilling dia	mm
	Tapping/Threading die dia	mm
	Live tool rev speed	rpm
	Live tool power	kw
Back End-Face Tool (Sub Spindle)
Fixed	Qty*Model	mm	4*ER20
	Drilling dia	mm	Φ13
	Tapping/Threading die dia	mm	M10
End face live tool		mm
Side-live tool		mm
Drilling dia		mm
Tapping/Threading die dia		mm
Live tool rev speed		rpm
Live tool power		kw
Rapid feed speed		m/min	18(X1/Y2)24(X2/Y1/Z1/Z2)
Feed motor power		kw	1
The power capacity		kva	16
Air pressure device		mpa	0.6
Weight		kg	3700
Dimensions (L*W*H)		mm	2550*1500*1900

Tool Configuration
Machine Configuration
Standard Configuration:
SYNTEC numerical control system
Main pneumatic chucking device
Movable guide bush
Synchronal rotary guide bush device
Live tool
Workpiece belt conveyor
Optional Configuration:
Non guide bush
MITSUBISHI numerical control system
FANUC numerical control system
High pressure pump
Oil mist collector
Y2 tool holder
Chip conveyor
Long workpiece collector

Bar Feeder Details
Bar Feeder SLM-320/S2 Technical Specifications
Diameter	mm	Φ3- (Φ20) Φ26 (May vary depending on applications)
Model	m	2.5	3.2	3.7	4.0
Magazine capacity		Φ5mm*52pcs
Overall length	mm	3355	3949	4505	4855
Overall width	mm	720
Max bar length	mm	2600	3200	3750	4100
Weight	kg	378	393	435	440
Air pressure	kg/cm2	5~7
Power supply		220V 3P (Varying power supply is available depending on applications)
Spindle height	mm	900~1200
Headstock type		Fixed/Sliding
Options		Telescopic Tube,Synchronization Device
