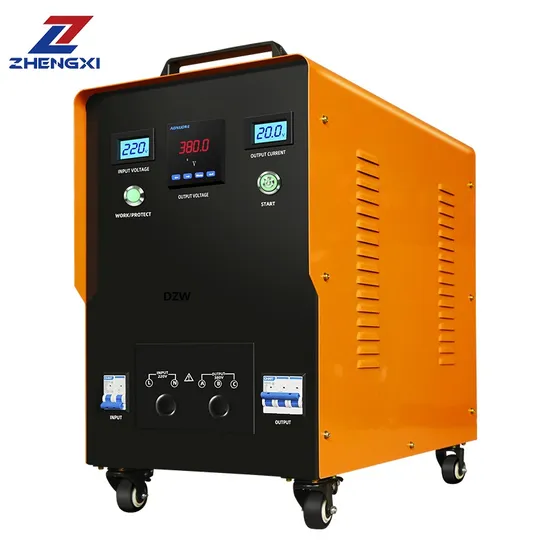

Single Phase to Three Phase Dry Type Transformer Input 220V Output 380V

Product Description

Products Description

Model	3 phase 3 WIRE OR 3 phase 4-wire
Input voltage	single phase 220V ± 15%
Input frequency	50HZ
Output voltage	380V
Output frequency	50HZ /60HZ
Output power	1.5KVA~ 100KVA
Load regulation rate	≤ ± 1%
Circuit mode	IGBT / PWM modulation
Output waveform	Standard sine wave CF=1.4
Input voltage	220V±15%
The output voltage	Three-phase 380V
Output current	Phase current high grade 41A low grade 82A
Frequency stability	≤0.01%
Load regulation rate	≤1%
Waveform distortion rate	≤2% (pure resistive load)
Phase angle	120°±1°
Crest factor ratio	31
Panel display	Output voltage, output current, output frequency, output power, and output power factor (switch display)
Protective function	Output overcurrent protection, overvoltage protection, over temperature protection, short circuit protection, self diagnosis protection, protection and alarm device
Protection reaction time	≤2ms
Machine efficiency	≥87%
Insulation withstand voltage	1800V AC/10mA/1 min
Insulation resistance	500V DC/50 MΩ
cooling method	Forced air cooling
noise	Less than 60db at 1 m
Working temperature	0~45°
Relative humidity	0~95 % (non-condensing state)
Note	Please make sure that the mains 220V can withstand the power of the power supply, otherwise there will be power failure protection.

Product Description
Single-phase three-phase power supply, general-purpose direct / direct-current circuit structure, SPWM control technology used, general single-phase three-phase power for industrial use. Single-phase conversion three-phase power conversion after three-phase power standard sine wave, phase angle 120 °, tsunami loss rate small 2%, full-fledged national three-phase power mass standard, application in various types. Single phase three-phase power supply solution for three-phase electric power supply due to inconvenient three-phase electric power production, inconvenient, three-phase electric power supply demand for three-phase electric power supply. Company Profile FAQ Q1: What is the Guarantee? A1: Within One Year From The Sale Date, If There Are Any Accessory Problems,You Just Provide The Photos Of Damaged Accessory, Then We Will Provide Free Accessory.According To The Number Of Products, We Will Provide Easily Damaged Accessories For Free.We Also Can Provide Technical Support If You Need.
Q2: Can we put/show our own Logo on your products?
A2: Yes, no problem, however, the quantity should be a bit big.
Q3: Is OEM/ODM available?
A3: Yes, It Is! Our Products Can Be Customized.We Design And Produce All Kinds Of Automatic Voltage Regulators/Stabilizers According To Our Customers' Specific Requirements.
Q4: What is the MOQ?
A4: For the small capacity products of the default configuration, it is 10 sets. For the big capacity products, it is 1 set.
Q5: Can you offer Form A or Form E or C/O ?
A5: Yes, no problem, we can apply for it from our local government.
Q6: What kind of Certificates do you have?
A6: CE, ISO9001 and SGS.
Q7: What is the Terms of Payment?
A7: L/C, T/T, D/P, D/A, Western Union and MoneyGram (for Small-amount payment).

---
