Plastic PVC Electric Plug Data Cable Injection Molding Machine

Product Description

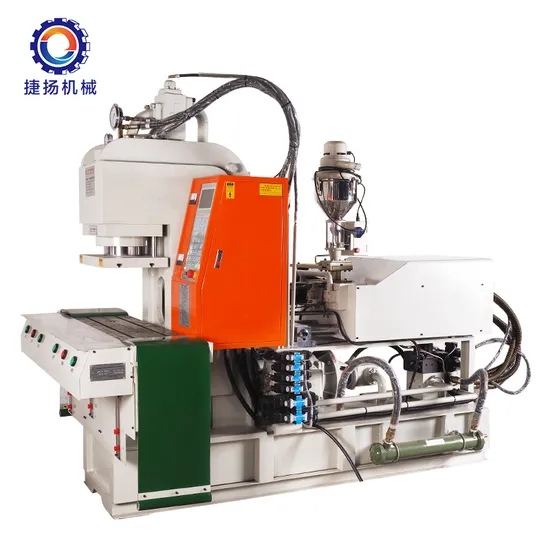

Jieyang Vertical Plastic Injection Machine
Function:
1. Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.With double slide table or rotary design, put-in, take-out products and molding finish at the same time, which is more safe and
efficient for production , then reduce the cost of production.
2. High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatly extend
machine & mold life.
3. Nitride and NIP/ Nitroflon coated screws and barrels are longlasting, robust and provide superior acid/alkaline resistance.Heavyduty double cylinder injection unit is maintenance friendly and free of oil leaks.
4. All series adapted Variable pump +PQ valves enable energy savings of 30~50%.
5. Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.
Parameter of Machine:

Model Unit JY-550C-2D Screw Barrel Diameter mm 32 38 Injection Pressure kg/cm2 1506 1063 Max. Shot Weight gram 139 196 Max. Shot Weight cm3 153 215 Screw Barrel Route mm 190 Screw Barrel Rotary Speed rpm 0-175 Nozzle Contact Force tons 1.5 Nozzle Retraction Nozzle mm 170 Number of Temperature Control pcs 4 Clamping Force tons 55 Platen Size mm 1000*280 Min. Mold Height mm 215 Opening Stroke mm 200 Ejetor Force tons 1.3 Ejetor Stoke mm 135 Max. Hydraulic Pressure kg/cm2 140 Pump Output L/min 40 Oil Resservoir Capacity Liter 280 Cooling Water Consumption L/hr 800-1000 Pump Motor Power kw/hp 7.5/10HP Barrel Heating Power kw 4.35 Total Power kw 13 Machine Weight tons 4 Machine Dimension(LxWxH) meter 3*1.2*2.1 Shipping Weight tons 4.1 Shipping Measurements(LxWxH) meter 3.1*1.3*2.3

Application :
Vertical injection machine have the advantage of low-noise, low-energy-consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, connectors, cables,auto parts, Plug ,etc.

Machine working video in Youtube:
Small cable products plastic injection machine	https://youtu.be/gOWbzyH_hGg
Power cord cable plastic injection machine	https://youtu.be/37wobT7-tqY
Single sliding table plastic injection machine	https://youtu.be/EKRNtaxmtTc
Double sliding table plastic injection machine	https://youtu.be/TQsE65dyvGk
Rotary table plastic injection machine	https://youtu.be/S4pSiGR78ek
Horizontal plastic injection machine	https://youtu.be/vNJAj5mJSvw
Double slider horizontal plastic injection machine	https://youtu.be/JBczO_C1XbY

---
