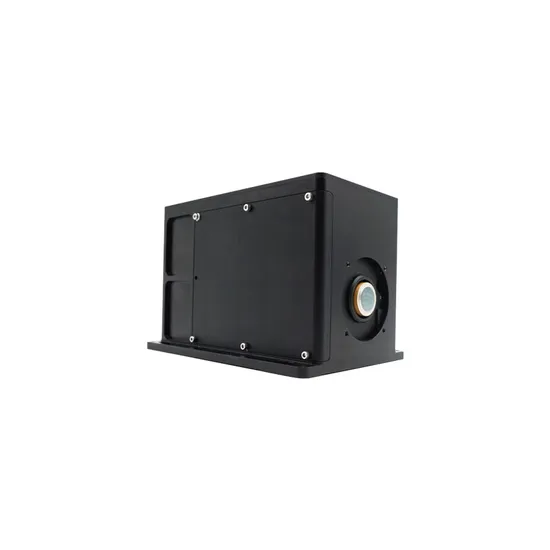

640X512 15um Fog Penetration Swir Mct Stirling Cooled Thermal Imaging Module

US$18,000.00
5-99 Pieces
US$15,600.00
100+ Pieces

Basic Info.

Model NO.
CQ-STM6C15L
Type
IP Camera
Sensor
CMOS
HDMI Format
1080P
Horizontal Resolution
520tvl
Kind
Autofocus Lens
Certification
CE, FCC
Feature
Waterproof / Weatherproof, High Definition, Mini Size
Effective Distance
≧30m
Sensor Size
1/3 inch
Remote Control
With Remote Control
Resolution
640X512
Frequency Range
0.8um-2.8um
Pixel Size
15um
Detactor
Mct
Cooling Mode
Sterling
Shock
20g/6ms
Video
PAL
Communication
RS422/RS232
Transport Package
Carton
Trademark
CQ or customized
Origin
Zhejiang
Production Capacity
1000 PCS / Month

Product Description

The SWIR Stirling cooled thermal imaging module adopts a high-sensitivity MCT focal plane detector with a spectral response range of 0.8μm~2.8μm, and the band can be customized.
The product adopts the image time domain filtering, enhancement, automatic dimming and other intelligent photoelectric processing algorithms to ensure good imaging quality and stable output characteristics.
The product features modular design, small size, light weight and compact structure, easy for integration.
Characterized by high sensitivity, strong fog penetration ability, multiple interfaces, high reliability and strong expansibility.
The product is widely used in fog penetration, astronomical observation, and industrial flaw detection among others.
Features:· High sensitivity, low noise, and Sterling cooling;
· 0.8μm~2.8μm SWIR broadband imaging (customizable);
· Dynamic range up to 70dB;
· Miniaturized IR imaging technology;
ModelCQ-STM6C15L
Resolution640x512
Frequency range0.8μm-2.8μm
Pixel size15μm
Detector materialMCT
Effective pixels>99.5%
Dynamic range≥70dB
Cooling modeSterling
Operating temperature-40ºC~+60ºC
Shock20g 6ms half-sinusoidal distribution
Input voltageDC 24V
Power consumption≤30W@20ºC
Video outputPAL / NTSC / CL / Gigabit / Fiber
Communication interfaceRS422/RS232
