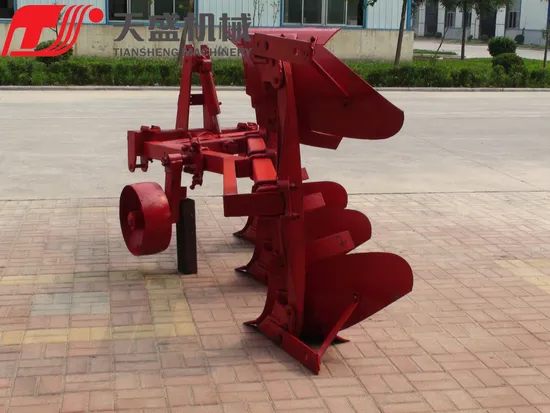

Hydraulic Reversible Furrow Plough Cultivator Turn-Over Farming Machinery Equipment Furrow Plow Plough

Product Description

Product Description

SHANDONG TIANSHENG MACHINERY SCIENCE AND TECHNOLOGY CO.,LTD
---The Drafting Unit Of Chinese Standard For Disc Harrow and Disc Plough and Fertilizer Spreader

Name:1LY Series Of Full Steel Hydraulic turnover plough

Model	Unit	1LF-330	1LF-430	1LF-530	1LF-235	1LF-335	1LF-435
No. of bottoms	pcs	6	8	10	4	6	8
Working width	mm	900	1200	1500	700	1050	1400
Working depth	mm	160-250			200-300
Matched power	hp	55-65	70-90	100-120	50-60	60-75	80-100
Overall weight	kg	550	750	950	450	650	900
Linkage		Standard three point mounted

Similar products

Company Profile



Certifications

Company events and honor


After Sales Service
All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .For the defect of material or workmanship has occurred in normal operation, The defective parts will be repaired or replaced free of charge. The guarantee parts will be offered to you in two ways.for the urgent request parts, We will ship the spare parts by international courier, The client will assure the courier expense. For the regular claim spare parts, we will ship them together with next order. We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately. We can also provide training services to different users. FAQ
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.

Other products

Due to the limited number of pictures uploaded,we have many products that are not on display.
All products are independently developed and manufactured by us.
If you are interested in our factory or our products,feel free to contact me.

---
