Electromagnetic Screen Shaker Lab Sieve Analysis Instrument

Product Description

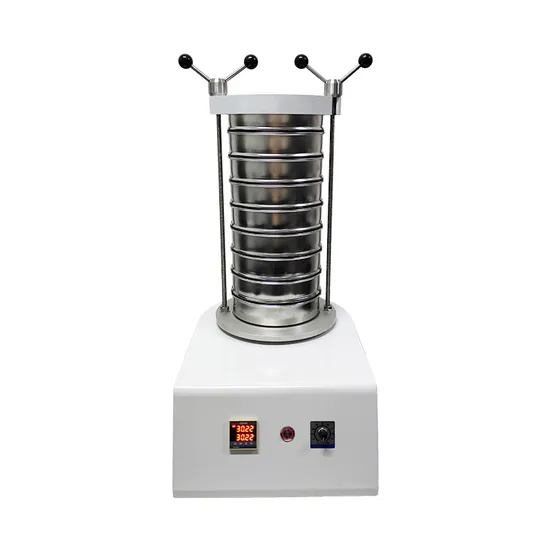

The electromagnetic vibrating sifter is a suitable sieving instrument for laboratory use. The instrument consists of an electromagnetic drive, housing, digital controller, sieve plate holder, combined sieve tower, clamps and a transparent visual sieve frame. The transparent sieve frame can be placed on any stage of the sieve to observe the sieving process. The instrument is suitable for standard sieves of 200, 203 and 100 diameters, for sieving of pharmacopoeias, for sieving of coarse aggregates and for sieving of fine aggregates. The instrument works with electromagnetic three-dimensional vibratory sieving, unlike mechanical horizontal two-dimensional reciprocating sieving, with higher sieving efficiency and repeatability than mechanical vibratory sievers. The instrument is equipped with sieving software, the weighing of the empty sieve mass and the sieve residual mass is automatically uploaded into the software, which calculates the percentage of each level by itself and finally generates the particle size distribution curve automatically, which is analysed by the software automatically. The test data can be printed and saved at will.
Model VSM-200

Features The Vibrating Sifter Features :
· It is designed with electromagnetic drive and can vibrate up to 3000 times per minute
· Short screening time and high efficiency
· Amplitude continuously and infinitely adjustable
· It is suitable for 99% of all screening requirements and has a wide range of applications
· It can be set to work in intermittent sieving mode for finer sieving of samples.

Product Parameters

Sieve tower tiers:	9 marked sieves at the same time, simultaneous sieving
Sieving range:	20um-30mm
Supply voltage:	220v50hz 5A
Instrument size:	350*200*520 W H D
Max. sieving capacity:	6 kg
Standard sieve diameter:	300/200/150/100mm

Standards
ISO3310 ISO565 ASTME11 GB/6003.2-1997 GB/T6003.1-2012, sieve frame and screen material all stainless steel type 304
