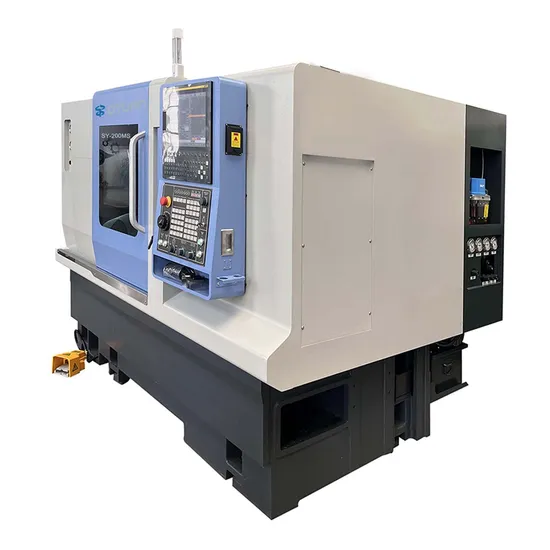

Automatic Twin Double Spindle CNC Lathe Machine with Mitsubishi Control System

Product Description

Product Description
Crafted with high-strength HT300 grade, this one-piece structure casting iron bed, our 30-degree step-type flat rail structure benefits from finite element analysis, ensuring unparalleled mechanical rigidity and stability. This design enhances long-term reliable accuracy, processing stability, and tool life, while stress relief treatment significantly improves accuracy and stability. The high-strength roller rail design and screw pre-tension drive system boost response rigidity.
With the ability to process both ends of the workpiece in one clamping, manual operations are greatly simplified. This configuration increases output and reduces processing steps. The second spindle can fully turn and handle workpieces during machining, thus reducing cycle times.
1.Direct drive synchronous electric spindle device: featuring a magnetic ring type incremental encoder (Sine and cosine) with positioning accuracy of 20 arc seconds and C-axis indexing accuracy of 40 arc seconds.
This effectively eliminates spindle vibration, ensuring the nose end deflection accuracy within 0.002mm. This allows for improved surface finish of the workpiece.
The rear-mounted rotor facilitates easy installation and maintenance.
Equipped with a cooling system, the spindle motor maintains a constant working temperature, suppressing thermal displacement. Having passed rigorous dynamic balance tests, the spindle system boasts excellent precision retention, high rigidity, and efficiency, enabling the machine to perform both fine finishing and heavy cutting. Optimal for mass production of complex shapes and high-finishproducts.
2. High-rigidity integral servo power turret with rapid and precise tool change performance. The tool holder features a high-rigidity BMT interface, driven by a servo spindle motor for reliable power transmission.
3. Equipped with THK linear guide rails and precision-ground ball screws, ensuring top-notch accuracy and durability. Each axis adopts a direct transfer shaft structure and a double-anchor pre-relay method to minimize thermal displacement and enhance machining accuracy. The high-rigidity, large-size, heavy-duty linear slide rails maintain machine accuracy under impact, ensuring smooth displacement and low noise, thereby extending service life.
4. Standard configuration includes a FANUC system, with the feed drive powered by a FANUC servo motor.
5. Featuring a perfect hydraulic and lubrication system with superior-quality hydraulic pumps, valves, and components, significantly reducing failure rates. The hydraulic and lubrication system design is both simple and reliable.
6. Incorporating a Taiwan rotary chuck, oil cylinder, and an automatic chip removal device, this setup greatly reduces operator labor intensity and ensures safe, efficient production. All functional components can be controlled via programming, including special fixtures.
Product Parameters

Name	Unit	SY200MS
The largest diameter rotating bed	mm	Ф600
Max processing diameter	mm	Ф400
Max.Swing Over Cross Slide	mm	Ф300
Max processing length	mm	290
Bar diameter	mm	Ф45/45
Spindle nose	/	A2-5
Spindle hole diame	mm	Ф56
Max speed of spindle	rpm	5500
Spindle motor power	kw	11
Spindle motor power	Nm	61-125
Hydraulic Cylinder/Chuck	/	6"
Spindle nose	/	A2-5
Spindle hole diame	mm	Ф56
Max speed of spindle	rpm	5500
Spindle motor power	kw	11
Spindle motor power	Nm	61-125
Hydraulic Cylinder/Chuck	/	6"
X/Z/S motor power	kw	2.4/2.4/1.8
X/Z/S travel	mm	240/230/360
X/Z/Y/S axis moving fast	mm/min	20/20/20
Slide rail type	mm	35
Positioning accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
The Tool tower type	mm/pcs	BMT55-12T
Power cutter tower motor	Kw	5
Max speed of spindle	rpm	5000
The tool biock specifications	mm	25x25
Circular cutter holder specification	mm	Ф40
The adjacent tool change time	sec	0.15
Machine size	mm	2600*2100*1900
Machine Weight	kg	4500
Cutting fluid tank volume	L	150
Volume of hydraulic unit box	L	40
Hydraulic oil pump motor power	kw	1.5
Volume of lubricating oil tank	L	2L
Auto lube pump motor power	W	50
Cooling water pump power	W	750

Products Configurations
