Spline Shaft Processing Equipmentcnc Gear Hobbing Machine

Product Description

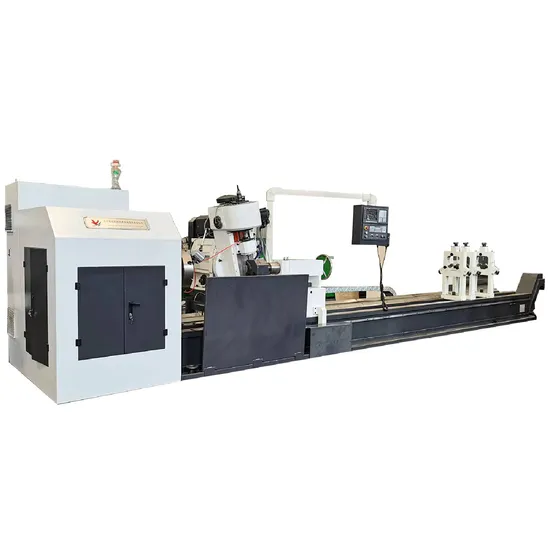

achine tool structure features:
≡ Overall high strength casting bed, four guide rail layout, guideway surface high-frequency quenching, good rigidity, high precision. The bed saddle is on two guide rails, and the head, tail seat and center frame are on two guide rails. The machine is equipped with a center frame and a tool holder. The guide rail lubrication of the machine tool is lubricated by the centralized intermittent special lubrication pump, and the lubrication is timely.
≡ The milling head is driven by servo spindle motor, which can make the hob realize stepless speed change and wide speed regulation range. The Angle of milling head is adjusted by worm gear with variable tooth thickness and locked manually to ensure the stability of machining.
≡ The feed shaft [Z axis, X axis] is driven by high precision ball screw through a wide number of servo motors, with high transmission accuracy and good positioning accuracy.
≡ Headboard spindle C axis adopts a wide number of servo motors directly connected with high-precision wear-resistant worm gear and worm gear (this worm gear and worm gear is variable tooth thickness worm gear, and the side backlash can be adjusted easily).
≡ Machine tail seat is mechanical, flexible and reliable.
≡ The machine is equipped with a wide number of control systems, and can also be configured according to user needs.
≡ The machine is equipped with a chip removal machine, and the iron chips generated in the milling process directly enter the chip removal machine to ensure a clean working environment.
≡ The electrical components in the machine tool electrical control cabinet are purchased from well-known domestic brands.

Item	Content	Unit
Machine tool use	Rolling flower key
The length of the bed	2600	mm
Bed width	800	mm
Type of bed rail	Quad rail
Maximum machining diameter	Φ100	mm
Maximum workpiece length	1000	mm
Maximum milling spline length	800	mm
Milling head motor power	3.7(servo spindle motor)	KW
Milling head motor speed	1500	r/min
Milling head reduction ratio	1:10
Tailstock spindle diameter	Φ100	mm
Maximum travel of tailstock sleeve	150	mm
Tailstock sleeve mounting taper hole	Mohs5#

---
