Ele Three Stage/Single Stage Inline Industrial Homogenizer

US$1,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
EBR/ELR
Certification
CE, ISO
Condition
New
Mixing Drum Shape
Stator and Rotor
Stirring Type
High Shear Force
Warranty
12 Months
Working
Shear Mixer
Model Number
Elr/Ebr
Material
SS304/SS316L
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Leadtime
30 Working Days
Payment Term
Tt/LC
Capacity
Optional
OEM/ODM
Acceptable
Certificate
Ce/ISO
Trade Term
CIF/Fob
Fineness
5-40 Micron
Flow
0.5-85m3/H
MOQ
1
Power
1kw-110kw
Speed
0-3000
Mixer Type
Homogenizer
Layout Type
Horizontal
Operating type
Continuous Operating
Transport Package
Wooden Case
Specification
optional
Trademark
ELE
Origin
Shanghai, China
HS Code
879820090
Production Capacity
200-2000

Product Description

Homogenizer&Emulsifier pump:

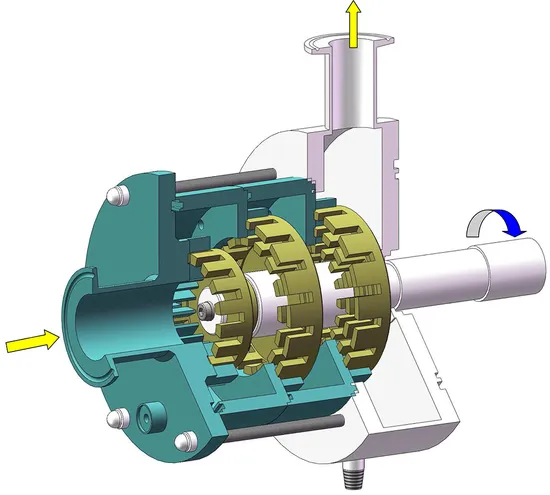

1.Picture:
Model No. Motot Power(kw) Rotation speed(RPM) Capacity(L) Lifting height(mm) Material
EBF-7.5 7.5 3000 <500 900 SUS304/316L
EBF-11 11 3000 <800 900 SUS304/316L
EBF-15 15 3000 <1200 900 SUS304/316L
EBF-18.5 18.5 1500/3000 <1800 1100 SUS304/316L
EBF-22 22 1500/3000 <2000 1100 SUS304/316L
EBF-37 37 1500 <2500 1600 SUS304/316L
EBF-55 55 1500 <5000 1600 SUS304/316L

Model No. Motot Power(kw) Rotation speed(RPM) Flow(m3/h) Inlet Outlet Material
ELR-405/1/6 4 3000 4 DN40 DN32 SUS304/316L
ELR-410/1/6 7.5 3000 8 DN50 DN40 SUS304/316L
ELR-415/1/6 11 3000 12 DN65 DN50 SUS304/316L
ELR-420/1/6 15 3000 18 DN65 DN50 SUS304/316L
ELR-425/1/6 18.5 1500 20 DN65 DN50 SUS304/316L
ELR-430/1/6 22 1500 22 DN65 DN50 SUS304/316L
ELR530/1/6 110 1500 85 DN150 DN125 SUS304/316L

2. Features
1.Reasonable structure to make machine more stable.
2.Higher accuracy
3.Rotor and stator with special heat treating, abrasion resistance .
4.The rotating parts have passed dynamic balance test and static balance test.
5.Mechanical seal is designed between the drive shaft and axle bearing, no leakage.
6.Key components are processed by fine grinding.
3.Combination:
4.ELE factory
Over 23 years with abundant experience of successful projects Professional service team to provide lifetime after-sale service&technical support Leading performance&quality ,longer service life Extremely good machinery accuracy
