Product Details
Product Description
Product Description

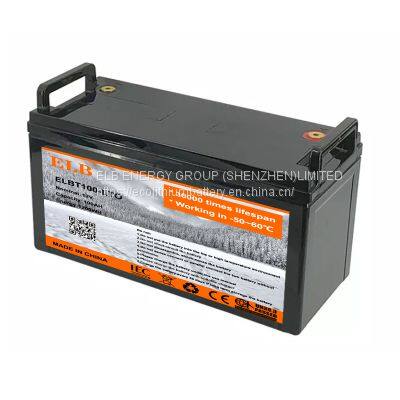

ELB 12V 100Ah low temperature LTO lithium battery built with lithium titanate chemistry. Which offer BMS controlled safety, long life,fast-charging performance(Optional Bluetooth function,which can real-time Bluetooth Access to battery SOC, Voltage, Current, Temperature status).
This battery have super low temperature performance in -50℃ and last more than 39000 times.
The BMS embeds smart balancing algorithms that control all cell voltages in the battery, making sure they are constantly at the same voltage level, optimizing battery capacity.
| ELECTRICAL SPECIFICATION |
| Nominal Voltage | 12V |
| Nominal Capacity | 100AH |
| Stored Energy | 1200Wh |
| Resistance | / |
| Self Discharge Rate | | Maximum Continous Charge Current | 100A |
| Maximum Continous Discharge Current | 100A |
| Charge Cut-off Voltage | 14 V |
| Discharge Cut-off Voltage | 9V |
| Cycle life(25°C) | >39000 times@100%DOD |
| MECHANICAL SPECIFICATIONS |
| Dimensions (mm) | L406×W173×H236 |
| Weight | 17kg |
| Terminal Type | M8 |
| Case Material | ABS |
| Enclosure protection | IP64 |
| TEMPERATURE SPECIFICATIONS |
| Discharge Temperature | -50 to 60°C |
| Charge Temperature | -50 to 60°C |
| Storage Temperature | -50 to 60°C |
| OTHERS SPECIFICATIONS |
| Short Circuit Protection | Automatically recover after removal of short |
| Life Expectancy (years) | Lifetime maintenance free(>30years) |
The Certification that ELB Got:
ELB Battery certification
Check details in ELB certification center.
>>
