Factory Low Price Saddle Moving Type Surface Grinder High Precision Grinder Machine

Product Description

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

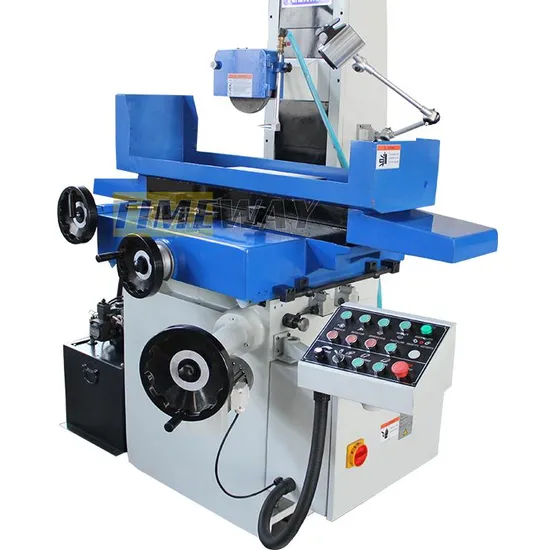

MY Series Hydraulic Surface Grinder

Characteristics of machine tools

1.The machine is reasonable in structure,good ragidity,beautiful appearance,convenient operation.

2.Using precision plastic guide surface and precision scraping,grinding imported hydraulic transmission,drive by synchronous.

3.The main mechanical valve is a special valve grinder,is divided into two parts,the mechanical commutation control,throttle control.Throttle control part and unloading function,can realize the station start and stop.

4.Grinding can be all kinds of plane and complex shaped surface,suitable for motor without grinding the feed ,according to user needs with a permanent magnet sucker or electromagnetic sucker.

Specification	Unit	KGS-2550AH KGS-2550AHR KGS-2550AHD
Table size	mm	500x250
Table travel(X/Y)	mm	520x270
Max. grinding area	mm	520x270
Distance from spindle center to table	mm	450
T-slots (wide/number)	mm	14x1
Permanent magnetic chuck size	mm	500x250
Table longitudinal speed (stepless)	m/min	3-20
Cross feed -Continuous	mm/min	150
Cross feed -Intermittent	mm/time	0-5
Cross feed handwheel-Revolution -Graduation	mm	4/0.02
Vertical min. feed handwheel-Revolution -Graduation	mm	AH: 2/0.01; AHR: 2/0.01; AHD: 0.1/0.001;
Grinding wheel size	mm	200x20x31.75
Spindle speed	rpm	2800
Main motor power	kw	1.5
Cooling pump power	kw	0.04
Hydraulic motor power	kw	1.5
Cross feed motor power	kw	0.04
Lifting motor power	kw	AH: -; AHR: 0.25; AHD: (servo) 0.75;
Oil tank capacity	L	60
Surface parallelism	mm	0.005/300
Surface roughness	um	Ra0.32
Net weight	kg	1110
Gross weight	kg	1220
Packing size(LxWxH)	mm	1980x1540x1970

Standard accessories:

Magnetic chuck

Balancing arbor

Wheel flange

Grinding wheel

Wheel extractor

Wheel dresser stand

Work lamp

Coolant tank

Tools & tool-box

Leveling wedges and bolts

Operation manual

Optional accessoriess:

Parallel wheel dresser

Digital readout

Wheel balancing stand

Dust absorption

Magnetic separator

Paper filter

Build in electro magnetic chuck controller

Inverter

---
