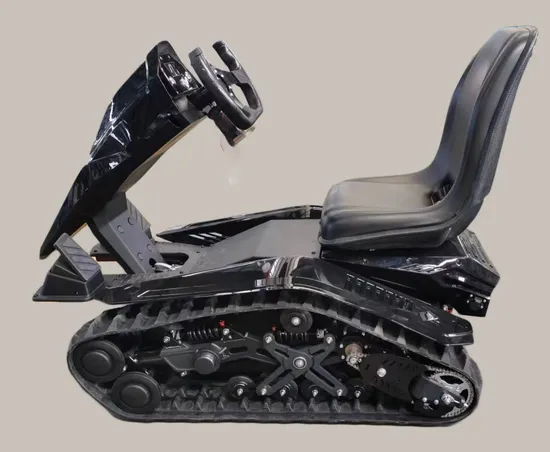

First Sale Single-Person ATV Tracked Snowmobile Amusement Park Beach Buggy for Adult

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
ET4-S
Type
Shock Absorber
Net Weight
163kg
Max Loading
200kg
Motor
Permanent Magnet Synchronous Motor
Battery
Ternary Polymer Lithium Battery
Transport Package
Steel Frame
Specification
"DIMENSION(L*W*H): 1564*73
Origin
Guangzhou, China
HS Code
87031011
Production Capacity
5000

Product Description

Product Description
Product Paramenters
MODEL ET4-S
DIMENSION(L*W*H)
handlebar stand upright
1564*730*1010mm
NET WEIGHT 163KG
MAX LOADING ≤200KG
DRAG WEIGHT 300KG
MOTOR PERMANENT MAGNET SYNCHRONOUS MOTOR
RATED POWER 4.0KW
MAX POWER 8.4KW
MAX TORQUE 98N.M
BATTERY TERNARY POLYMER LITHIUM BATTERY
SPECIFICATION OF BATTERY 72v45ah
CHARGER 84v15a
CHARGING TIME ≤3HOURS
CHARGING AMBIENT TEMPERATURE 0ºC TO 50ºC
TRACK DOUBLE RUBBER TRACK
SUSPENSION SYSTEM ALUMINUM CASTING
CHRISTIE SUSPENSION
SHOCK ABSORBER HYDRAULIC DAMPING *6
MAX SPEED (FORWARD) 28km/h
MAX SPEED (BACK OFF) 28km/h
TURNING RADIUS 0M
CLIMBING ABILITY (FORWARD ) ≥ 30 °
CLIMBING CAPACITY (LATERAL) ≥ 30 °
RANGE ≥ 30KM (NORMAL TEMPERATURE @ AVERAGE 15KM / H)
DISCHARGE AMBIENT TEMPERATURE -15 ºC TO 60 ºC
APPLICABLE ENVIRONMENT ALL SEASON / ALL TERRAIN
CONTAINER LOADING CAPACITY 24UNITS/20FT, 54UNITS/40HQ
Packaging & shipping
FAQ Q1. Do you accept to customize the vehicles as per our special request? Answer: Yes, we customize vehicles as per customer's special request with reasonable cost and lead time, as long as the customization is not related to the chassis modification. Q2. What is your warranty term? Answer: We provide 1 year warranty. And for any failed part under warranty, if it can be repaired at your side and the repair cost is lower than the valve of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any. Q3. Do you provide after service spare parts? Answer: Yes, we provide all the spare parts to our vehicles, even 5 years after we stop the production of the vehicle. For your easier working to select the spare parts, we also supply parts manual. Q4. Do you provide technical support? Answer: Yes, we provide technical support by email and phone. If necessary, we can also send our engineer to your place. Q5. Do you accept OEM order? Answer: Yes, as long as the order quantity is reasonable (yearly 300-500 units), we will accept. Q6. What are your terms to be your agent/dealer in my country? Answer: We have several basic requirements, firstly you shall be in electric vehicle business for some time; secondly, you shall have the capability to provide after service to your customers; thirdly, you shall have the capability to order and sell reasonable volume of electric vehicles. Q7: What is your payment term? Answer: For new customers, our typical payment term is 'T/T 30% deposit against order confirmation, T/T 70% before container loading'. Irrecoverable L/C at sight is also acceptable. For old customers, our payment term can be more flexiable. Please contact us for more information.
