Psd Series High Speed Steel Plate Drilling Machine with Hydraulic Clamps

Product Description

PSD Series High Speed Steel Plate Drilling Machine With Hydraulic Clamps
Product Description
The PSD is an updated model based on PD series ,this model is CNC gantry moveable drilling machine with high speed drilling spindle,used widely in bridge , steel structure, tower transmission joint plate drilling work.
They are specially suitable for the small workpiece with less holes , suitable for customer who care about high efficiency in steel structure and tower transmission filed
MAIN PROCESSING STEPS
1. Loading and fixing the material on the worktable.
2. Send the program to the CNC.
3. Start Drilling. Drilling operation can be applied from the spindle. It can also drill blind hole if necessary.
4. The machine will change the tools for different diameter or marking if necessary.
5. The chips can be moved out to the chips box by the chip cleaner.

THE PRODUCT STRUCTURE FEATURES
1.The machine bed is heavier than PD series, with thicker plate completely welded , while other suppliers using square pipes inside and only outsie using steel plate to save the cost
2. Double rails , lead screws, motors on both sides of the machine bed , two rails : one fix on the top side of bed, the other on the side , much stronger and heavier force load capacity
3. Installed on back side of gantry, save space and cost for independent cabinet
4. Controller adopts CNC controller system, more intellegent and easy operation on PC board, standard configuration is KND, Siemens control system is optional.
5.is servo motor feeding , holes diameter range φ12-φ50mm, with BT50 spindle
Maximum rotation speed 30-3000rpm/min
Coolant : inner and outside coolant
6.Guide Rail adopts famous HIWIN brand, 45mm width , installed at side of bed, save the space and increase the Y stroke
7. Equipped with remote controller, with magnetic can put any position on machine body, very convenient for operator
8. Equips with auto lubrication system, regularly pumps the lubricating oil into each and every parts including blocks, ball screws and bearings, avoid manual tedious lubrication work, prolong the usage life of parts

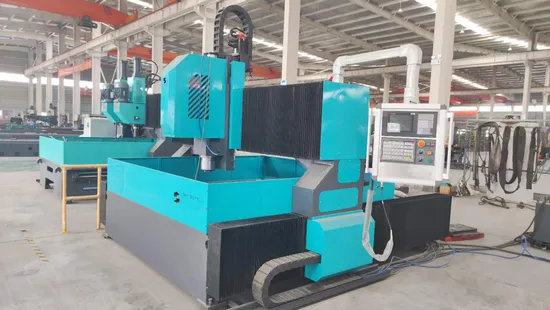

MACHINE DETAILED PICS:


Product Parameters

Name			Unit	PsD2016	PSD3016
Work piece size	Max. thickness of overlap		mm	200mm
	Max. size(W*L)		mm	2000*1600	1600*3000
Spindle	Drilling	Morse taper		BT50
	Range of Drilling diameter	High-speed steel coating drill	mm	Φ14~Φ50
		Twist drill	mm	Φ12~Φ50
	Type of change speed			Converter stepless
	Range of spindle speed	BT50	r/min	Up to 3300
	Max. Spindle stroke		mm	450
	Feeding type			Servo motor feeding
Clamp devices	Range of clamping thickness		mm	15~40
	Quantity of Clamping cylinder		Pc.	12
	Clamping force		KN	7.5
Cooling water	Type			Inner Cooling & Outside Cooling
	Capacity		L	120
Pressure of hydraulic system			Mpa	6
Pressure of gas source			Mpa	0.5
Motor power	Motor of drilling spindle		KW	11
	Hydraulic pump motor		KW	2.2
	Servo motor of X axis		KW	2.0
	Servo motor of Y axis		KW	1.5
	Servo motor of Z axis		KW	2.0
Stroke	X axis		mm	2000	3000
	Y axis		mm	1600	1600
	Z axis		mm	450
Positioning speed			m/min	8
Size			mm	Unconfirmed
Weight	Machine Moby		kg	Approx.7ton	Approx.8ton
	Chip-cleaner system		kg	Unconfirmed
The Working Environment 1.Working power supply: three-phase four-wire system 380±10%V 50±1HZ 2.Environment temperature: -10-50°C 3.environmental humidity: ≤75% 4. Noise of machine: ≤ 75D

Detailed Photos
WORKSHOP
WORKPIECE
HOT SELLING DRILLING MACHINE
Packaging & Shipping

Our Advantages
Professional Technical Team: We own a professional technical team who devote to the advanced design on the machines and better performance with plenty experience more than 15 years.
Various Patents: we have been got many patents on various models of our products these years and keep on developing new products.
High Products Quality:We have been gained a lot of good reputation among our customers and never got any quality complaint until now
Professional Experienced Sales Team:
Our sales team have average 10 years ' experience in export process, they are qualified to provide the most reasonable proposal for you and resolve your problems on machines selection and usage immediately once you ask.

FAQ
1. What's your advantage ?
A: We assure each machine dispatched from our factory a long-life usage with easy operation and humane design.We consider help our customer to hence the production efficiency and save your human power as our aim. 2. How l believe you?
A: Welcome to visit us to check our plant and ability, the payment method can be chosen and the third party inspection through ****** is available. 3. What about the warranty of your products?
A: We provide 12 months warranty since the machine arrived at customer site , free charge of spare parts and oline maintenance service 4. Where are you? Can l visit you?
A: our factory located in Shandong province, china, welcome to visit us at any time. 5. How about the delivery time?
A: For standard model, the delivery usually 25 days since the advance payment receipt. For the customized products, the delivery time will follow our agreement with customer.We never receive any complain from our customers for the delivery time 6. What kind of payment does your company support?
A: TT,100% LIC at sight,Cash, Western Union are accepted. If you have other payment terms, welcome discuss with us

Our Service
1. OEM DESIGN AND PRODUCTION:
Our active engineer and design team can make the special machine according to your special requirement. 2. DELIVERY IN TIME ASSURANCE:
We assure the machines you ordered will be delivered at promised time 3. YOUR PAYMENT PROTECTION:
You can pay through ****** to protect your advance payment 4. FREE INSTALLATION AND TRAINING:
We provide the installation and training by online video support; local installation and training service team; send engineer for installation and training, installation operation video provided.

---
